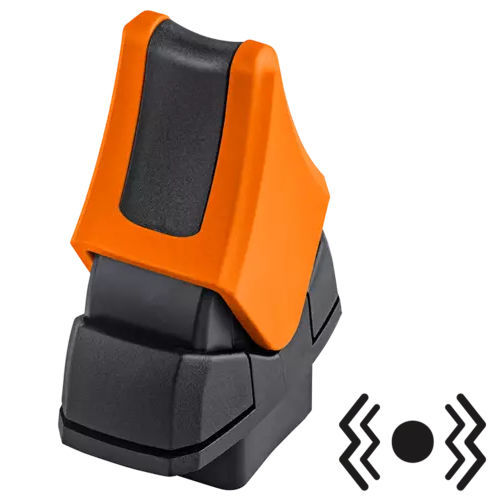

Due to its space-saving design and precise controllability, the MONO VIBRO finger joystick is the ideal solution in limited installation space. The single-axis joystick‘s cap consists of two parts, the inner part can be laser-engraved with both standard and customer-specific symbols. The outer part is available in several colours.
The modular design allows it to be used in a wide number of industrial applications. The MONO VIBRO finger joystick provides the operator with haptic feedback through vibration so that he can react correctly to the relevant situation.
FEATURES AND ADVANTAGES
• Central zero position
• Angle of rotation ± 30°
• Contactless Hall-effect sensor technology
• Two analogue signals, X characteristic
• Sensitive control
• Ergonomic design
• Protection class IP 68 according to DIN EN 60529, electronic
• IP 5X vibration area, electronic
• Long service life of 5 million cycles, analogue output, 1 million cycles, vibration area
• EMC in accordance with EN 12895: 2015-09
• EMC 100 V/M in accordance with ISO 11452-2
• Functional safety in accordance with EN ISO 13849, PL d
• Haptic feedback with vibration
• Start and duration of vibration is configured by customer
