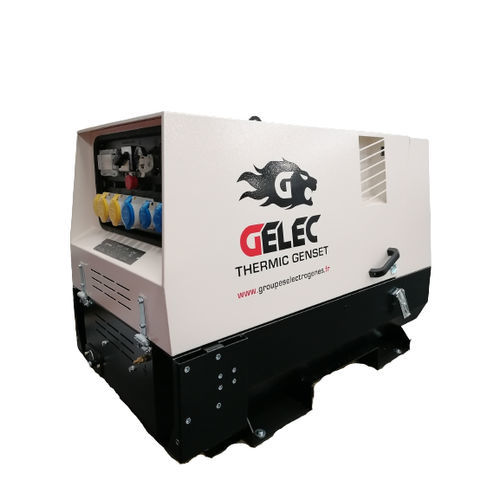

Diesel generator set LÉOPARD-11
single-phasemobile50 Hz

Add to favorites

Compare this product

Go to the Gelec website for more information

Characteristics

Type: diesel
Phase: single-phase
Portability: mobile
Frequency: 50 Hz
Cooling system: water-cooled
Emissions level: Stage V
Other characteristics: compact
Domain: agricultural
Power: 11 kVA
(15 hp)
Voltage: 230 V
Rotational speed: 3,000 rpm
(18,850 rad.min-1)
Length: 1,220 mm
(48 in)
-Not Tr-: 670 mm
(26 in)
Fuel tank capacity: 37 l
(9.8 gal)
Height: 840 mm
(33 in)

Description

General technical description: Power supply: 11 kVA Frequency: 50 Hz Voltage: 230V Running time: 9 h Tank capacity: 37L Weight: 350kg Dimension (L x W x H): 1220 x 670 x 840 mm Technical description of the engine: Engine Type: Kubota Number of cylinders: 3 Power supply: 17 HP Motor speed: 3000 rpm Water cooling Fuel: Diesel Starting System: Electric Control panel equipped with: - DSE ON/OFF switch - Volt meter - DSE 3110 module (displays warnings, shutdowns, and engine status information like high temperature, low oil pressure, low fuel level, volts and frequency, operating hours, battery voltage monitoring) - Circuit breaker - Emergency stop - 2 CEE 32A single-phase 230V sockets - 1 CEE 16A single-phase 230V socket Soundproof hood Exhaust silencers
