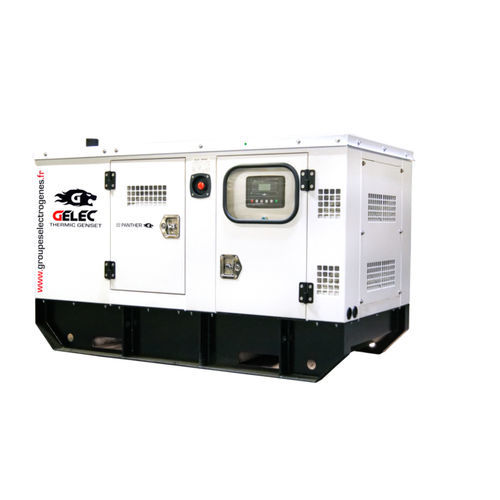

Diesel generator set PANTHER-14YD

single-phasethree-phasestationary

Power factor : 0.8 (cosΦ) Frequency : 50 Hz Tank capacity: 70 litres (240 litres for long-range use) Autonomy on 75% charge: 23 hours Autonomy on 75% charge (long range): 80 hours Engine specifications : Number of cylinders : 4 Governor type : mechanical Specifications : 4-cycle engine, direct fuel injection , liquid-based cooling Displacement : 1,8 L Maximum standby power at rated rotation 1500tr/min : 19,01 Cv Compression ratio : 18:01 Engine starting type : electrical 12V Air inlet system : atmospheric Alternator specifications : Excitation system : Self Excited AVR : Stamford Voltage regulation type : electronic This diesel generator, available in single-phase and three-phase versions, provides maximum output of 13.8 kVA. It is ideal for providing lighting on construction sites and is easily able to power accommodation facilities, modular cabins and site huts. Electrical intensity can reach 58.5 amps in the three-phase version. This 12.5 kVA (continuous power) industrial genset is enclosed and soundproof. It benefits from a Deep Sea digital controller and integrated automatic transfer switch. Cogeneration system option: simultaneous production of thermal and electrical energy. Bi-Oil option: uses vegetable or recycled oil as fuel. This genset is equiped with four poles thermal magnetic circuit breaker with ajustable differential switches, with a DEEPSEA control panel and with an integrated automatic transfer switch system.
