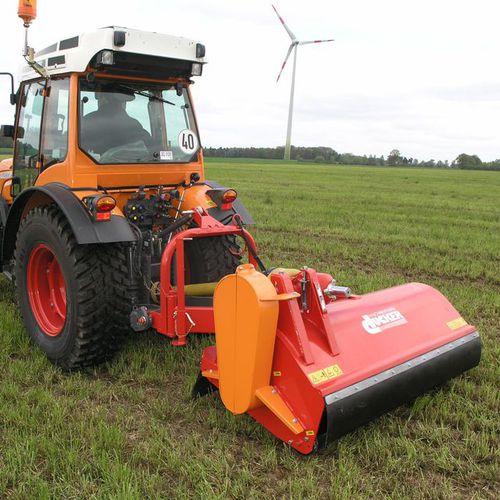

Mounted mower UMK series

flailPTO-drivenfor tractors

The robust mowing, mulching and chopping units of our UMK series are outstanding for use on tractors with 23 to 44 KW (30 to 60 HP) output. Working widths range from 1.60 m to 2.10 m. The UMK series is built as a rear-mounted unit, a front-mounted unit or a combined rear and front unit. Due to the generous dimensions of the gear, v-belt drive, bearings and flail shaft, the uni mower is largely insensitive to foreign bodies such as stones, pieces of wood, iron parts and other rubbish. The rough adjustment of the cutting height is done by adjusting the roller. The fine adjustment is done by adjusting the top link. On request, the UMK UNI mower can be equipped with a flail shaft with heavy, free floating flails (see page 7). This means that it can also be used for stronger growth with shrubs as well. As another alternative, the UMK can be equipped as fine-cut flail mower. The grass to be mulched is heavily crushed and rots faster. The attachment frames are rigidly installed as standard. On request, we equip the devices with mechanical lateral adjustment or a hydraulic displacement. The mowers can then be moved for a total of 60 cm (see figure on page 7). This lateral adjustment is useful when mowing in inaccessible places such as under trees, on walls and fences etc. The range of application of the UMK UNI mower is versatile as it mows all types of grass, from seaweed to reed up to sedges. Not even old grass, thorny bushes or shrubs up to a diameter of 4 cm pose an obstacle.
