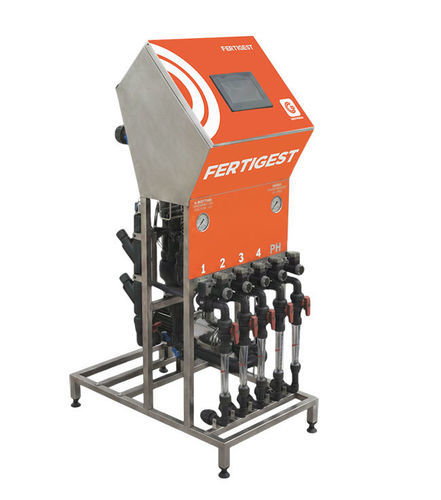

Automatic fertilizer injector FERTIGEST

with precise dosingwith controllerVenturi

Short description
Professional fertigation unit with scalable modular architecture, Venturi injection and precise nutrient, pH and EC control.

Detailed description
GESTIMAX is a compact solution for integrated irrigation and crop nutrition management. The unit combines an AISI 304 stainless steel frame with an integrated controller and a 5" color touchscreen for local and remote operation. Fertilizer and pH/EC regulators are injected via Venturi technology without moving parts in the suction system, reducing downtime and maintenance. A cylindrical mixing block ensures homogeneous blending of the nutrient solution before introduction to the main line.

Highlights

• Compact design with AISI 304 stainless steel construction.
• Injection capacity up to 500 l/h per line, expandable to 1000 l/h.
• Integrated controller GXF-5 S16.
• 5" color touchscreen display.
• Remote control via PC software and mobile app with GW600 router.

General specifications
The unit is equipped with a GXF-5 S16 control unit and a 5" color touchscreen for simplified operation. Injection capacity per line is up to 500 l/h, expandable to 1000 l/h. The chassis features a load-bearing structure in AISI 304 stainless steel and is designed for fertigation applications with pH and electrical conductivity (EC) control.

Main technical data
Supply voltage: 380–400 V + N – 50 Hz
Total power: 3 kW
Total current: 6 A
Number of injection lines: 3 / 4 / 5
Structure type: AISI 304 stainless steel
Dimensions (L × W × H): 505 × 800 × 1345 mm
Net / gross weight: 62.4 / 63.7 / 65.0 kg
Suction system: PVC cylindrical block with venturis DN25
Injection solenoid valves: FIP 10 mm
Mixing chamber: PVC DN 140 mm
Inlet connection: DN 40 mm
Outlet connection: DN 40 mm
Injection lines: DN 25 mm
Configurable digital outputs: 16 (expandable to 120)
Control board: EC + pH reading and control of 7 fertilizers + pH
Probe header diameter: DN 40 mm

Pump and protection
Fertilizer pump control: Manual / automatic selector
Fertilizer pump: 50 Hz · 1.85 kW
Maximum working pressure: 4.0 bar
Pressure transducer: 4/20 mA – 0/10 bar

Technical specifications

• Controller model: GXF-5 S16
• Touchscreen: 5" color
• Injection per line: up to 500 l/h (expandable to 1000 l/h)
• Structure: AISI 304 stainless steel
• Dimensions: 505 × 800 × 1345 mm
• Weight: 62.4 / 63.7 / 65.0 kg (net / gross)
• Hydraulic connections: inlet DN40, outlet DN40, injection lines DN25
• Suction system: PVC cylindrical block with venturis DN25
• Mixing system: PVC mixing chamber DN 140 mm
• Digital outputs: 16 (expandable to 120)
• pH and EC control: EC + pH reading and control of up to 7 fertilizers + pH
• Fertilizer pump: 50 Hz · 1.85 kW; max pressure 4.0 bar
• Pressure transducer: 4/20 mA – 0/10 bar
