Motor-mower GF 3
sickle bar

motor-mower
motor-mower
motor-mower
motor-mower
motor-mower
motor-mower
motor-mower
Add to favorites
Compare this product


Characteristics

Mounting
walk-behind
Technology
sickle bar
Working width

115 cm
(45.28 in)

Power required

8.4 ch, 9.3 ch
(8.4 hp, 9.3 hp)

PTO speed

965 rpm
(6,063.3 rad.min-1)

Weight

105 kg
(231.5 lb)

Description

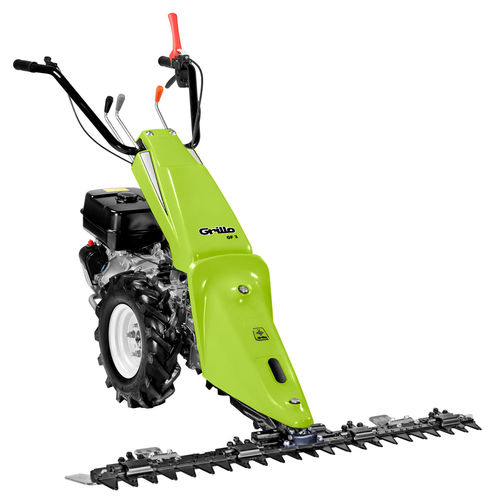

The Grillo GF3 is a perfectly balanced sickle bar; engine and P.T.O. are positioned in such way to obtain the ideal ground clearance for professional mowing even on slopes. The centre of gravity was designed to make the GF3 manoeuvrable and safe even under the most demanding conditions. The 3 gears can all be used whilst mowing. The GF3 is equipped with an active cone clutch, a device which increases the operator’s safety considerably. The Loncin G300FA, Honda GX270 petrol and Kphler KD15 350 diesel engine are ideal for professional mowing on slopes. The vast choice of cutter bars allows to fulfil all mowing requirements. The large range of accessories make the GF3 a real multi-purpose machine! The standard cutter bar is model “Tirol” with a 115 cm cutting width and with crank action. It’s appropriate for cutting all grass types and can be used in rustic areas, fruit orchards or grass for animal feed. The crank mechanism was built with top quality steel and is equipped with greases nipples on all articulating parts. The grass disperser is mounted on vibration-proof rubbers, has a special profile to better grass dispersal in the most demanding situations: the cut grass is taken and dropped on the ground by the action of the wheels allowing easier control when travelling forwards. The blade sections are made of special steel and fixed with 6 mm rivets The cutter bar’s teeth with a special profile to give a perfect cut and are made from heat treated steel. The blade tensioners are adjustable ensuring constant adherence between blade and teeth. The 115 cm cutter bar “Tirol” is available also with oil bath action and adjustable cutting head.

Catalogs
