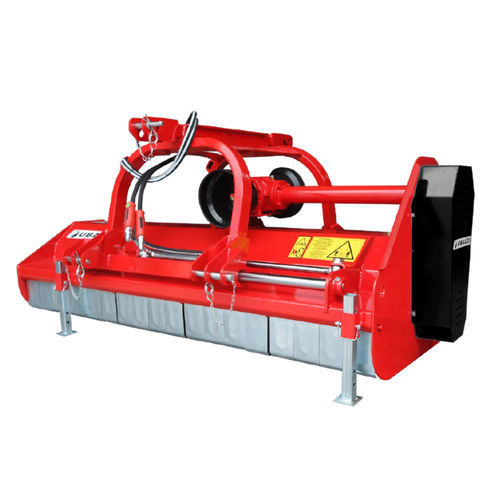

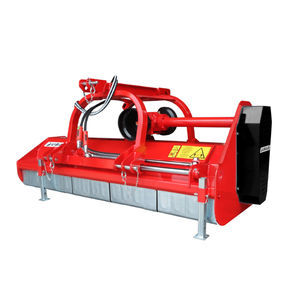

Mounted mulcher REV L serieshammerknifegrass
Add to favorites
Compare this product
Characteristics
- Type
- mounted
- Technology
- hammer, knife
- Applications
- grass
- Number of hammers
- 20 hammers, 24 hammers, 22 hammers, 28 hammers, 26 hammers
- Number of knives
- 48 knives, 40 knives, 56 knives, 44 knives, 52 knives
- Other characteristic
- PTO-driven, hydraulic, for tractors
- Cutting width
140 cm, 160 cm, 180 cm, 196 cm, 220 cm
(55.12 in, 62.99 in, 70.87 in, 77.17 in, 86.61 in)- Tractor power
40 ch, 44 ch, 48 ch, 52 ch, 56 ch
(40 hp, 44 hp, 48 hp, 52 hp, 56 hp)- Weight
420 kg, 450 kg, 480 kg, 520 kg, 570 kg
(925.94 lb, 992.08 lb, 1,058.22 lb, 1,146.4 lb, 1,256.63 lb)
Description
The REV reversible mulchers is a machine designed to be used with tractors ranging from 40 to 70 HP. It is particularly suitable for shredding grass, woody material, vine shoots, potatoes, cotton, etc.
Standard equipment
-Three-point hitch with manual lateral displacement
-Gearbox with built-in freewheel - PTO speed 540 or 1000 rpm
-PTO shaft
-Adjustable rear leveling roller
-Support foot
-CE safety guards
-Counter-knives
Accessories
-support sleds
-hydraulic lateral shifting kit
-Double sheet (to be ordered) (RevL 140<160)
-Double sheet (to be ordered) (RevL 180<220)
-Upper counter-knives.
