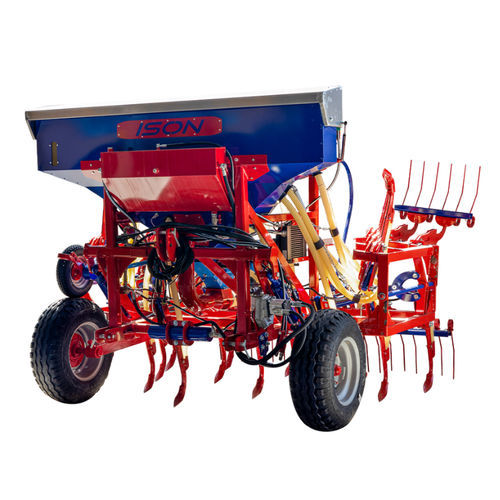

Conventional seed drill ISONtractor-mounted3-point hitchfolding
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Seed distribution
- conventional
- Other characteristics
- tractor-mounted, 3-point hitch, folding, with harrow
- Working width
Max.: 5 m
(16'04" )Min.: 3.3 m
(10'09" )- Inter-row spacing
17.5 cm, 18.5 cm, 19 cm, 21 cm
(6.9 in, 7.3 in, 7.5 in, 8.3 in)- Weight
Max.: 1,490 kg
(3,284.9 lb)Min.: 1,130 kg
(2,491.2 lb)- Seed hopper volume
1,250 l
(330.2 gal)
Description
With no-stop shares or flex springs 45×12. Standard features include a folding frame, 3-point hitch compatibility, depth wheels with manual screw adjustment, a simple hopper metering unit, an electronic fan speed control unit, and a hydraulic system for fan transmission to the tractor.
All models are built with hydraulic opening of the semi-frames, except for the ISO/19/A1 model, which is constructed with manual opening. All models are supplied with a leaf spring harrow support. The standard harrow springs are produced with two coils without a curling hammer.
