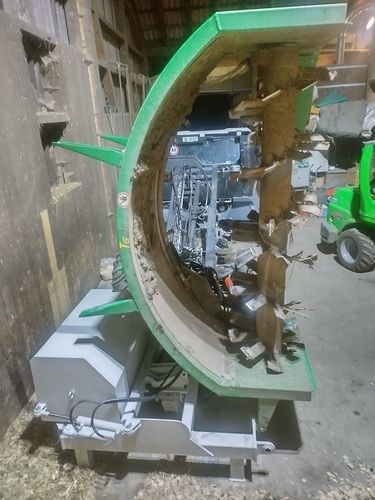

Mounted compost turner TG 233

A great advantage of this machine is its compact length (< 2m). The total weight is reduced to less than 2.5 t. (TG 301). The 3-point beam fits both tunnel models TG 231 & 301. Prerequisite for the tractor -3-point TG 231 is suitable for tractors from 75 hp. -3-point TG 301 is suitable for tractors from 125 hp. Irrigation Since soil nutrition cannot be produced without water, there are several options. Ask for the most ideal solution. We will be happy to advise you. Technical data -Conversion capacity up to 400 m³/h -Transfer shaft width 2.5 m -Total width in transport position 1.85 m -Total length 3.0 m -Tunnel height inside dimension 1.35 m -Total height (transport position) 3.55 m -Working speed, ideal at full throttle 300 - 400 m/h -Weight with wide tires (incl. concrete weight) 1'950 kg -Rent width x height 2.5 x 1.2 m -Only top hitching possible Basic equipment -mech. execution -Tunnel with chrome steel plates -direct drive on transfer shaft -Large support wheel outside the tunnel -Feeding shields mechanical -Braked axle with parking brake -Wide tires 11.5-15 -Direct drive. Gearbox on transfer shaft. -Lighting system -Front hitch: DIN towing eye -Rear weight -Side weight -Articulated drawbar with spindle -cardan shaft with shear bolt
