Laboratory seed treater LCM-12

automaticfor coating

Product description

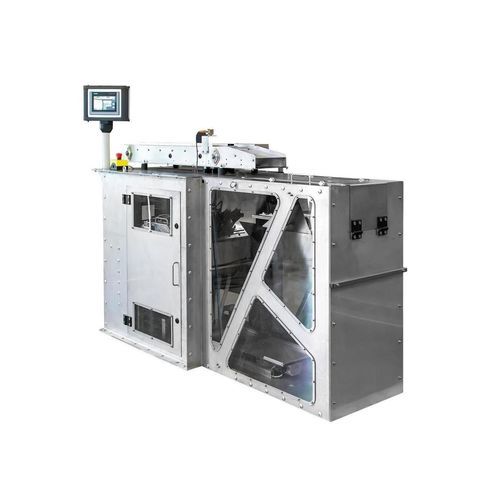

The HALDRUP LCM-12 magazine seed treater performs precision seed treatment of various seed types using the rotor-stator principle. It features a 12-chamber magazine and supports flexible processes for seed treatment, coating and pelletizing to ensure even active ingredient distribution and seed-to-seed coverage. Designed for treatment volumes from 100 ml to 2000 ml, the machine is suitable for seed breeding and application trials. An air-cushion system provides gentle handling of seeds during processing, and a fully viewable discharge flap simplifies cleaning and operation. The LCM-12 delivers homogeneous and efficient seed treatment.

LCM-12 advantages

• Fully automatic treatment of 12-chamber magazines
• Consistent coating level via paddle-coating technique
• Designed for seed breeding and application trials
• Effective treatment for approx. 25 to 250 seeds per chamber
• Optimal seed-to-seed distribution
• Homogeneous seed coverage
• Seed-friendly handling through flexible paddles
• Seed sensors ensure only filled chambers are processed
• Seed can be loaded directly into the magazine treater or by using pre-filled magazines
• Constructed entirely of stainless steel
• Treatment dosing via 6 individual hose (peristaltic) pumps
• One blow-off nozzle per treatment chamber prevents seed mixing
• Ergonomic working position due to fully automatic magazine transport
• Control via touchscreen display

Additional features

• Rotor-stator principle for precise distribution of treatment liquid
• Flexible process control for treatment, coating and pelletizing
• Air-cushioning for gentle seed handling
• Fully viewable discharge flap for easier cleaning
• Suitable for seed breeding and application trials with small to medium batch sizes

Characteristics / Technical specifications

• Magazine: 12 chambers
• Principle used: Rotor / Stator
• Treatment volume: 100 ml to 2000 ml
• Seeds per chamber: designed for approx. 25 to 250 seeds per chamber
• Coating technique: paddle-coating for seed-to-seed coverage
• Dosing: 6 individual hose (peristaltic) pumps
• Blow-off nozzles: 1 nozzle per treatment chamber
• Material: fully stainless steel construction
• Seed sensors: present (detection of filled chambers)
• Operation: touchscreen control
• Cleaning: fully viewable discharge flap
• Applications: seed treatment, coating, pelletizing; seed breeding and application trials
