Insect trap

electricpheromonefor crops

Overview

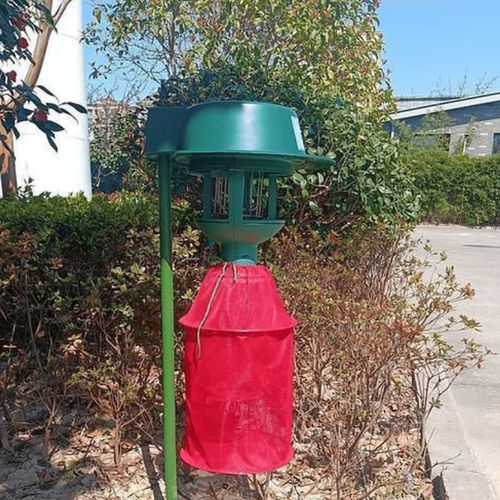

Targeted pest control solution designed for tea gardens and other crop environments. Combines pheromone lures and LED wavelength attraction with a 360° capture design and optional solar + built-in lithium power for extended field operation.

Description
This multi-function pest trap attracts specified pest species using pheromone dispensers or LED sources tuned to target wavelengths. Once insects approach, a high-voltage electric grid neutralizes them. The unit is intended for deployment in cropland and tea garden environments where selective targeting and low impact on non-target organisms are required.

Available types

• Multi-Function Pest Trap
• Boat-Shaped Trap
• Barrel Trap
• Fruit Fly Trap
• Armyworm Trap
• Cone Trap

Key features

• Power options: Solar panel with built-in lithium battery for continuous operation and simplified installation.
• 360° open design: Omnidirectional attraction to maximize target capture while minimizing non-target impact.
• High-voltage electric grid: Rapid neutralization of captured pests for effective population control.
• Adjustable deployment height: 10–150 cm range to match crop canopy and target insect behavior.
• Control functions: Light-sensitive activation and programmable timer for optimized trapping periods.
• Low environmental impact: Designed to reduce non-target mortality and preserve beneficial insects.

Technical specifications

• Attraction methods: Pheromone lures and LED-specific wavelength attraction.
• Capture mechanism: 360° omnidirectional attraction with high-voltage electric grid elimination.
• Power: Solar with built-in lithium battery (specify capacity per model).
• Height adjustment: Adjustable from 10 cm to 150 cm.
• Controls: Light control (photocell) and time control (programmable timer).
• Intended use: Tea gardens and other cropland environments.
• Design focus: Low non-target kill rate; non-toxic operation without chemical spraying.
