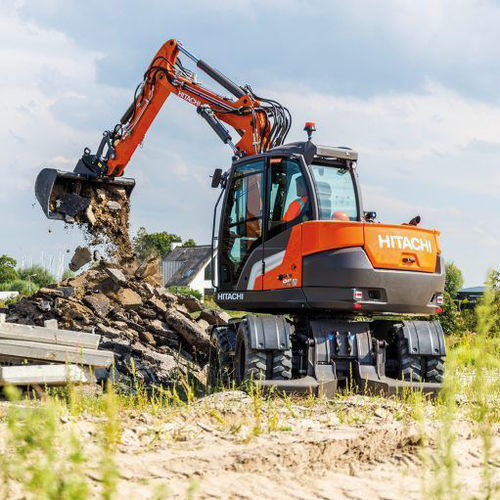

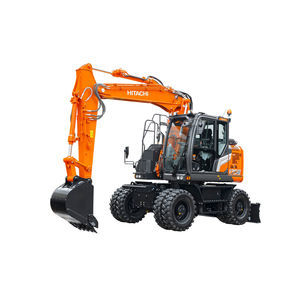

Compact excavator ZX95W-7

hydraulic

Overview
The ZX95W-7 wheeled excavator delivers versatile performance across a range of urban and site applications. Configurable operating modes and precise hydraulics enable productive cycle times while cab features support reduced operator fatigue and improved on-site safety.

Key benefits

• Compact footprint and short turning radius for work in confined urban or road-side locations
• Four-wheel steering for enhanced manoeuvrability and site positioning
• High lifting capacity to support efficient material handling and attachment use
• Spacious cab with ergonomic controls and good visibility for extended operation

Model summary

• Engine Rated Power (kW): 55.4 kW
• Operating Weight: 9 640 - 9 970 kg
• Backhoe Bucket ISO Heaped: 0.22 m3
• Available in: Europe

Engine & hydraulic system
Engine Model: DEUTZ TCD 2.9 L4 Stage 5
Engine Type: 4-cycle water cooled, common rail direct injection
Aspiration: Turbocharged with waste gate, intercooled, cooled EGR
After-treatment: DOC + DPF
No. of cylinders: 4
Rated power: 55.4 kW at 2 300 rpm
Maximum torque: 300 Nm at 1 600 rpm
Main pumps: 2 variable displacement axial pistons pumps (tandem type)
Maximum oil flow: 1 x 145 L/min
Maximum oil flow (Pilot): 11 cm3

Bucket and arm digging force
Bucket digging force ISO: 5 000*daN
Arm crowd force ISO: 3 000 daN

Working ranges
Max. digging reach: 7 701 mm
Max. digging depth: 3 754 mm
Max. dumping height: 5 786 mm

Dimensions
Overall length: 5 665 mm
Overall height: 3 986 mm
Overall width: 2 490 mm

Attachments

• Durable buckets and ground engaging tools to maximise uptime and productivity
• Wide range of compatible attachments available to match application requirements
• Ground engaging tools (GET) designed for quick, safe installation and replacement

Technical specifications

• Engine model: DEUTZ TCD 2.9 L4 Stage 5
• Engine type: 4-cycle water cooled, common rail direct injection
• Aspiration: Turbocharged with waste gate, intercooled, cooled EGR
• After-treatment: DOC + DPF
• No. of cylinders: 4
• Rated power: 55.4 kW at 2 300 rpm
• Maximum torque: 300 Nm at 1 600 rpm
• Main pumps: 2 variable displacement axial pistons pumps (tandem type)
• Maximum oil flow: 1 x 145 L/min
• Maximum oil flow (Pilot): 11 cm3
• Bucket digging force ISO: 5 000*daN
• Arm crowd force ISO: 3 000 daN
• Max. digging reach: 7 701 mm
• Max. digging depth: 3 754 mm
• Max. dumping height: 5 786 mm
• Overall length: 5 665 mm
• Overall height: 3 986 mm
• Overall width: 2 490 mm
• Operating weight: 9 640 - 9 970 kg
• Backhoe bucket ISO heaped: 0.22 m3
