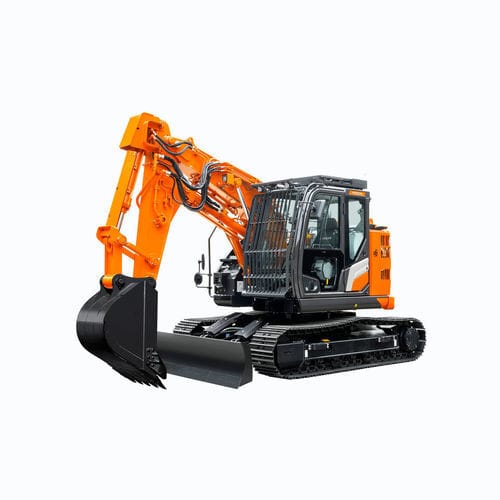

Hydraulic excavator ZX135US-7 SRF

compact

Overview
This short-radius compact excavator is engineered for tunnelling and other confined-space works where a reduced tail swing and short boom/arm are required. It is built for continuous underground operations and accepts a range of heavy-duty attachments normally fitted to larger 20-tonne machines. The machine can be lowered into below-ground sites by crane and can operate in tandem with clamshell telescopic-arm excavators.

Key features

• Engine rated power: 74 kW (ISO14396)
• Operating weight: 16 200 – 17 800 kg
• Max. digging reach: 6 390 mm
• Short boom and arm designed for confined spaces and tunnelling
• Compatible with attachments used on larger 20-tonne machines (e.g. crushers, breakers)
• Can be lowered into below-ground sites by crane
• Capable of tandem operation with clamshell telescopic-arm excavators
• Availability: Europe

Engine & hydraulic system
Engine model: TOYOTA INDUSTRIES CORPORATION 1KDE
Engine emissions: EU Stage V
Engine type: 4-cycle water-cooled, common rail direct injection
Aspiration: Variable geometry turbocharged, intercooled, cooled EGR
Aftertreatment: DOC+CSF system
No. of cylinders: 4
Piston displacement: 2.982 L
Pilot pump: 1 gear pump (max flow 33.6 L/min)

Hydraulic system
Main pump: 2 variable displacement axial piston pumps

Bucket and arm digging force
Bucket digging force (ISO): 162 kN
Arm crowd force (ISO): 75 kN

Weights and ground pressure
Shoe grouser type: Triple
Shoe width options: 500 / 600 / 700 mm
Operating weight: 16 200 – 17 800 kg

Working ranges
Arm length: 2.05 m
Max. digging reach: 6 390 mm
Max. digging depth: 2 640 mm
Max. dumping height: 5 260 mm

Dimensions
Undercarriage length: 3 580 mm
Overall width of upperstructure: 2 480 mm
Overall height of cab: 2 940 mm

Top Features
Engine rated power (kW): 74 kW (ISO14396)
Operating weight (kg): 16 200 – 17 800 kg

Technical specifications

• Model: ZX135US-7 SRF
• Engine model: TOYOTA INDUSTRIES CORPORATION 1KDE
• Engine rated power: 74 kW (ISO14396)
• Engine emissions: EU Stage V
• Engine type: 4-cycle water-cooled, common rail direct injection
• Aspiration: Variable geometry turbocharged, intercooled, cooled EGR
• Aftertreatment: DOC+CSF system
• Cylinders: 4
• Piston displacement: 2.982 L
• Pilot pump: 1 gear pump (max flow 33.6 L/min)
• Main pump: 2 variable displacement axial piston pumps
• Bucket digging force (ISO): 162 kN
• Arm crowd force (ISO): 75 kN
• Shoe grouser type: Triple
• Shoe width options: 500 / 600 / 700 mm
• Operating weight: 16 200 – 17 800 kg
• Arm length: 2.05 m
• Max. digging reach: 6 390 mm
• Max. digging depth: 2 640 mm
• Max. dumping height: 5 260 mm
• Undercarriage length: 3 580 mm
• Overall width of upperstructure: 2 480 mm
• Overall height of cab: 2 940 mm
• Designed for tunnelling applications with short boom and arm for confined spaces
• Compatible with attachments for larger 20-tonne machines (crushers, breakers)
