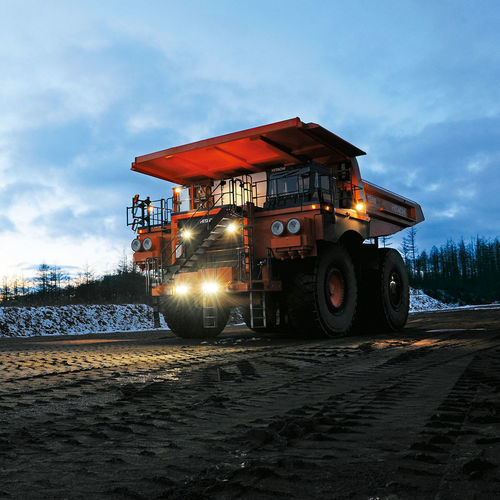

Dump truck EH3500AC-3

2-axle

Overview
Designed to operate with EX2600-7, EX3600-7 and EX5600-7 ultra-large excavators, the EH3500AC-3 offers exceptional hauling capability and is built for the toughest working environments. The Advanced Hitachi AC Drive System provides smooth, responsive control when starting, driving uphill and performing steering manoeuvres.

Key operating systems
The pitch control system limits bouncing and rebound when travelling on uneven ground and coming to a stop. The side skid control reduces the risk of slipping during turns on slippery surfaces by adjusting wheel motor torque between left and right wheels. By reducing tyre slippage on acceleration and tyre lock-up during braking, the truck achieves high drive stability and consistent haul cycles that support productivity.

Easy operation
The spacious cab accommodates two full-size seats and features a large multilingual LCD clearly visible to the operator. The display provides operational data and alerts such as travel speed, engine RPM and hauling performance. Normal operation requires only two pedals (acceleration and brake); body control and direction-change levers and switches are located on the centre console within easy reach.

Tire and wheel options
Rim Width: 37.00R57 (standard) 736.6 mm (29 in.)
40.00R57 (optional) 736.6 mm (29 in.)

Dimensions
Overall length: 13 560 mm (44 ft. 6 in.)
Overall width: 9 130 mm (29 ft. 11 in.)

Engine
Engine model (standard): Cummins QSKTA50-CE (T2)
Optional engine model: MTU 12V4000 C21 (Not Certified)

Features / Highlights

• Nominal payload with standard equipment: 181 tonnes (200 tons)
• Gross machine operating weight: 322 000 kg (709,888 lb.)
• Engine rated power: Standard - Cummins QSKTA50-CE: 1 491 kW (2 027 PS, 2 000 HP); Optional - MTU 12V4000 C21: 1 510 kW (2 053 PS, 2 025 HP)
• Max. travel speed (continuous): 56 km/h (35 mph)
• Advanced Hitachi AC Drive System for smooth and responsive drive control
• Pitch control and side skid control systems to reduce bouncing, rebound and slipping
• Cab ergonomics: two full-size seats, large multilingual LCD, centre-console controls

Technical specifications

• Model: EH3500AC-3
• Nominal payload (kg): with Standard Equipment - 181 tonnes (200 tons)
• Gross machine operating weight (kg): 322 000 kg (709,888 lb.)
• Engine (standard): Cummins QSKTA50-CE (T2)
• Engine (optional): MTU 12V4000 C21 (Not Certified)
• Engine rated power (kW): Standard 1 491 kW; Optional 1 510 kW
• Max. travel speed: (Continuous) 56 km/h (35 mph)
• Tire sizes: 37.00R57 (standard) / 40.00R57 (optional)
• Rim width: 736.6 mm (29 in.)
• Overall length: 13 560 mm (44 ft. 6 in.)
• Overall width: 9 130 mm (29 ft. 11 in.)
• Cab: two full-size seats, large multilingual LCD display
• Control layout: two pedals for normal operation; body and direction levers on centre console
