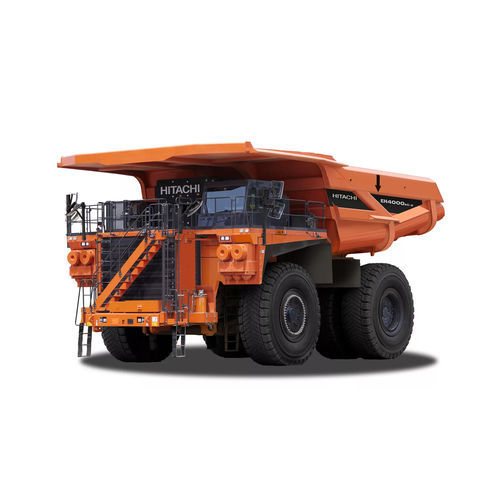

Dump truck EH4000AC-5

transport2-axle

Overview
Designed for high-capacity haulage in large-scale mining operations, the EH4000AC-5 combines high transport speed, strong torque and reinforced structural durability to reduce cycle times and support stable operation across varied site conditions.

Key model data

• Nominal Payload: 242 tonnes (267 tons)
• Gross machine operating weight: 422 tonnes (465 tons)
• Engine Rated Power: Standard 1 864 kW (2 534 PS, 2 500 HP); Option 2 013 kW (2 738 PS, 2 700 HP)
• Maximum continuous speed (electric drive): 65 km/h

Benefits

• High hauling capability to reduce cycle times and improve fleet productivity.
• Reinforced body and chassis design for extended service life under severe loading conditions.
• Electric drive and high-capacity brakes for controlled deceleration and improved operational stability.

Pass match / Loading compatibility

• Well matched with hydraulic excavators such as the EX5600.
• Also supports efficient loading with models including the EX3600 and EX8000.
• Optimized pass match reduces unnecessary loading cycles and supports stable loading across varied materials and site conditions.

Technical specifications

• Engine — Engine Model: Cummins QSKTA60-CE; Emission/consumption: fuel consumption optimized; Rated Power (@1900 min-1): 1 864 kW (standard) / 2 013 kW (option); Cylinders: 16; Bore × Stroke: 159 × 190 mm; Displacement: 60 L.
• Electric Drive — Planetary ratio: 35.3 : 1; Maximum continuous speed: 65 km/h.
• Tires — Tire size: 50/80R57 (standard); Rim width: 29 in (STD) / 32 in (OPT).
• Body capacities — Struck (SAE): 147 m3 (192 cu. yd.); Heaped 2:1 (SAE): 187 m3 (245 cu. yd.) (capacities vary with material density).
• Steering — Steering system complies with ISO 5010; Turning diameter (ISO 7457): 27.4 m.
• Hydraulic system — Body raise time: 19.0 s; Body down time (float): 20.0 s.
• Brakes — Service brakes: front and rear hydraulically applied plus electric brake; Axles: oil-cooled multiple disc; Secondary: complies with ISO 3450; Parking brake: spring applied, hydraulically released; Electric brake max dynamic: 3 500 kW.
• Weights (approx.) — Chassis with hoist & body parts: 153 500 kg; Body excluding body parts: 26 500 kg; Net machine weight: 180 000 kg (includes operator, 100% fuel, standard equipment); Weight distribution empty: Front 54% / Rear 46%; Loaded: Front 35% / Rear 65%.
• Cab — HI-TEC ROPS/FOPS cab: ROPS complies with ISO 3471 and SAE J1040; FOPS complies with ISO 3449.
• Body construction — Floor: 16 mm high tensile 400 BHN abrasion-resistant; Front: 9 mm 400 BHN; Sides: 9 mm 400 BHN; Canopy: 6 mm 400 BHN; Corners: 12 mm 400 BHN.
• Service capacities — Crankcase (w/ filters): 260 L; Engine cooling: 576 L; Fuel tank standard: 2 170 L (optional 4 172 L); Hydraulic system: 1 000 L; Brake cooling: 550 L; Planetary drives (L & R): 300 L; Front wheels (each): 42 L; Washer: 5.3 L; Main accumulator: 61 L.
• Dimensions — Overall length: 15 260 mm; Overall width: 8 560 mm; Overall height: 7 400 mm.
• Wheelbase & related — Wheelbase: 6 040 mm; Tread F/R: Front 6 010 mm / Rear 4 960 mm; Vehicle width F/R: Front 7 340 mm / Rear 7 720 mm; Ground clearance F/R: Front 1 060 mm / Rear 860 mm; Front overhang: 4 840 mm; Body inside L × W: 9 180 × 7 560 mm; Body upper edge height: 6 790 mm; Body dump height (Max/Min): 14 620 / 1 600 mm.
• Summary — Nominal Payload: 242 t; Gross machine operating weight: 422 t; Engine Rated Power: Standard 1 864 kW / Option 2 013 kW.
