Pneumatic seed drill Pronto 9 DC

discgrassfor cover crops

Summary

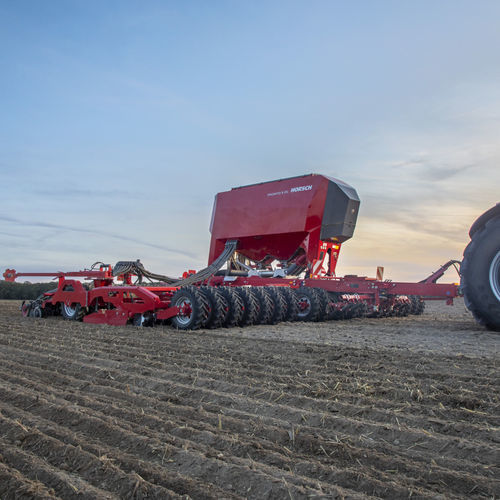

The HORSCH Pronto 9 DC is a universal disc seed drill for varied conditions, engineered for low draft requirement, high seeding accuracy and high working speeds. It combines intensive seedbed preparation with the DiscSystem, reconsolidation using a packer and modern seeding elements (TurboDisc / ParaDisc) to ensure uniform emergence.

Main advantages

• Simple and clear adjustments
• Low power demand: reduced weight, front and side packer adaptable directly
• Soil preparation by DiscSystem: 46 cm high-speed discs producing a large amount of fine soil and leveling the seedbed

Operating principle (3 steps)

• Step 1 – Seedbed preparation: High-speed discs (46 cm) ensuring intensive mixing and production of a large amount of fine soil, leveling the seedbed.
• Step 2 – Reconsolidation: Inline pneumatic packer providing optimal clearance and leveling the soil in front of each seeding unit.
• Step 3 – Seeding: TurboDisc 3rd generation seeding unit (pressure up to 125 kg, maintenance-free) or ParaDisc; seed metering and reconsolidation by tongue and press wheel for optimal furrow closure.

Standard equipment

• DiscSystem
• Pneumatic packer with agricultural profile
• TurboDisc seeding unit
• ParaDisc seeding unit
• HORSCH metering system / HORSCH rotors
• Unilateral folding

Optional equipment

• WorkLight Pro
• Fertilizer and seed flow control
• Pre-emergence markers
• Track eraser tines or discs
• HorschConnect
• Crossbar behind DiscSystem
• Small-seed metering kit
• Side markers
• eosT10 / eosT10 Pro
• Double-hopper Grain & Fertilizer version
• Double-hopper with PPF system
• Oil cooler
• Inter-row packer and front packer
• Front crossbar
• Special pneumatic system for spelt
• Single-row heavy harrow behind the DiscSystem

Areas of use

• Sowing after various soil preparations: reduced tillage, sowing on ploughed land or after intensive soil work
• Suitable for many crops: rapeseed, wheat, barley, large-seeded legumes, grasslands, cover crops, etc.
• Optimized for spelt sowing via a dedicated pneumatic system

Technical data / specifications

• Working width: 9.00 m
• Transport width (transport position): 3.00 m
• Transport width (detailed value): 2.99 m
• Transport height: 3.99 m
• Overall length: 9.21 m
• Double-hopper capacity: 6000 l (e.g. 40:60)
• Single hopper capacity (range): 4000 - 6000 l
• Number of seeding units: 60
• Number of PPF coulters: 30
• TurboDisc seeding unit pressure: up to 125 kg
• ParaDisc seeding unit pressure: 25 - 150 kg
• PPF coulter pressure: up to 200 kg (max.)
• Seeding discs / press wheels: 34 / 32
• Row spacing (inter-row): 15 cm
• Packer tyre dimensions: 7.50-18 AS
• Packer tyre Ø: 85 cm
• Recommended working speed: 10 - 20 km/h
• Required power: approx. 175/240 - 240/330 kW/hp (depending on configuration)
• Axle load: 9000 - 13500 kg
• Support load (report of load): 750 - 2500 kg
• Filling opening (measure): 1.00 x 2.40 m
• Double-hopper filling opening dimensions: 0.75 x 2.45 m
• Filling height: 3.40 m
• Number of hydraulic distributors (DW control units): 3 (resp. +1 for filling auger, front packer)
• Hydraulic blower oil flow: 35 - 45 l/min
• Interchangeability & mounting: Cat III - III/IV hitch, drawbar hook Ø 40 - 50 mm, K 80 ball head (depending on version)
