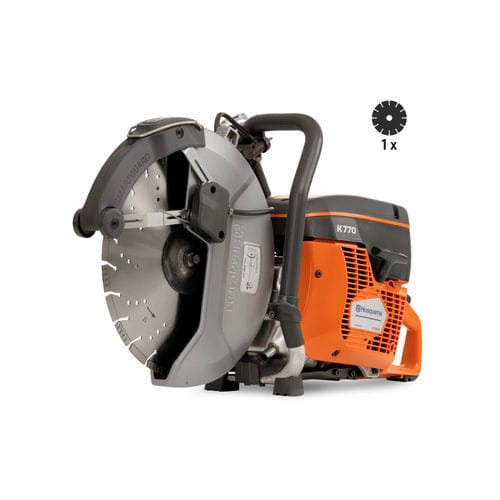

Cutter K 770 SmartGuard

Product description
Husqvarna K 770 SmartGuard is a petrol power cutter designed for professional cutting tasks. Equipped with SmartGuard, an extended blade guard that reduces the likelihood of accidents and kickback by emphasising correct technique and the proper cutting zone. The semi-automatic SmartTension™ system provides optimal belt tension for efficient power transmission and extended belt life. The machine combines low weight, a high power-to-weight ratio, easy starting and very low handle vibrations to reduce operator fatigue and support long operation cycles.

Key benefits

• SmartGuard extended blade guard for improved operational safety
• Semi-automatic SmartTension™ system for optimal belt tension and long belt life
• High power-to-weight ratio and light design for easier handling
• Reliable starting system including maintenance‑free DuraStarter™
• Exceptionally low vibrations in cutter handles for increased operator comfort
• Accessible design for simplified inspection and maintenance
• Poly-V belt for better power transmission, reduced re-tensioning and extended service intervals
• Active Air Filtration™ two-step filtration system for increased product life
• SmartCarb™ automatic filter compensation to maintain power throughout filter life
• Optimised engine performance with digital ignition and X-Torq engine technology for fuel efficiency
• Features that reduce slurry and water consumption during cutting
• Easy and optimal belt tensioning (SmartTension™)
• Compatible with multiple blade bushings
• Smooth blade stop and heavy-duty cutting arm for robust cutting tasks

Features / Functional highlights

• Operational safety
• Easy to inspect
• Purposeful design
• Easy and optimal belt tensioning
• Light and powerful
• Heavy-duty cutting arm
• Long service intervals
• Digital ignition with optimised timing
• Exceptionally low vibrations (vibrations below 2.5 m/s² in the cutter handles)
• Easy to start
• Maintenance-free air filter (check/change only if lack of power occurs)
• High power with less fuel
• Less slurry and low water consumption
• Easy to change blade guard position
• Fits multiple blade bushings
• Efficient power performance
• Smooth blade stop
• Maintenance-free starter (dust-sealed starter)
• Reduced wear (fully sealed transmission belt)
• Active Air Filtration™ (centrifugal cleaning + single paper filter)
• Anti-vibration system
• DuraStarter™
• Poly-V belt
• SmartCarb™

Typical applications

• Asphalt cutting (roadworks)
• Cutting blocks, curbstones and pavers
• Burying of cables
• Cast concrete cutting
• Regular cutting in floors and walls
• General construction and utility cutting jobs

Technical specifications

• Output power: 3.7 kW
• Cylinder displacement: 73.5 cm³
• Electrode gap: 0.5 mm
• Cylinders: 1
• Number of strokes: 2-stroke engine
• Blade diameter, max: 300 mm
• Cutting depth, max: 100 mm
• Arbor diameter: 25.4 / 20 mm
• Blade thickness, max: 5 mm
• Peripheral speed, max: 80 m/s
• Product size (length × width × height): 735 mm × 225 mm × 429 mm
• Weight (complete product w/o side packed articles): 10.8 kg
• Sound power level, guaranteed (LWA): 115 dB(A)
• Vibrations left/front handle: 2.4 m/s²
• Vibrations right/rear handle: 2.1 m/s²
• Exhaust emissions (CO₂ EU V): 711 g/kWh
