Compact hydraulic power unit

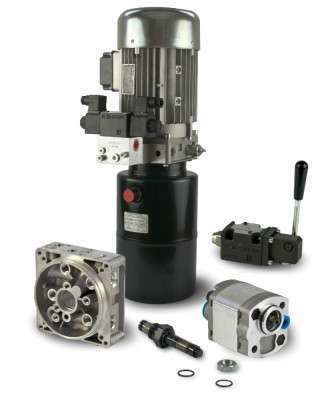

Our approach aims to maximize productivity and efficiency for our customers. Andrea Gambusera Hydronit CEO COMPACT Series Modular Hydraulic Power Packs by Hydronit represent the ideal solution for those seeking power, compactness and flexibility in a single unit. Designed around Universal and Smart manifolds, these power packs offer highly customizable configurations, adapting perfectly to various industrial and mobile applications. Thanks to their modular structure, AC or DC electric motors with fixed or variable speed, single or double gear pumps, plastic or metal tanks and a wide range of hydraulic valves, COMPACT power packs guarantee high performance with thousands of possible hydraulic solutions. Key Features of the COMPACT Series - Power and efficiency: up to 7.5 kW AC and 4 kW DC, with flow rates from 0.3 to 25 l/min and pressures up to 370 bar. - High integration: optimized components to simplify the system, with pumps, pressure and flow control valves, check and directional valves integrated in the central manifold. - Maximum flexibility: the heart of the system is a die-cast aluminum central manifold, assemblable in thousands of configurations to adapt to any application requirement. - Ease of maintenance: all components and valves are made in a single pre-assembled piece, which can be screwed directly into the manifold, avoiding the use of washers, springs and nuts that complicate assembly. Intelligent Modularity Modular system with interchangeable components, for maximum flexibility and customized configurations. Efficiency and Performance Optimized design to reduce consumption, improve power and ensure long-term reliability. Optimized performance for maximum efficiency The COMPACT Series power packs are equipped with: - Pressure-balanced gear pumps and helical rotor pumps, designed to maximize efficiency and reduce energy consumption. - Electric motors and solenoid valve coils optimized to ensure high power density and reduced heat generation. - Components 100% tested before delivery, to ensure leak-free and trouble-free operation over time. - Hardened steel parts, designed to resist wear and ensure long operational life. Flexible solutions for every need Hydronit offers COMPACT power packs in different modes to adapt to market needs: - Assembled and tested units: ready to be installed directly on OEM machines. - Individual component kits: to allow local distributors to optimize stock and logistics by assembling units on-site. Compatibility and market standards The COMPACT Hydraulic Power Packs are designed to ensure maximum compatibility with major industrial standards: - Group 0 and group 1 gear pumps, available in unidirectional, bidirectional and double (HI-LO) versions. - Standard electric motors with B14 mounting, from frame 71 to 112, compatible with Nema 56C and 184TC. - Screw-in cartridge valves, with standard 3/4-16 UNF SAE08 cavities, for simple and secure integration. Why choose COMPACT Hydraulic Power Packs? - Custom configuration for every application - High energy efficiency and reduced consumption - Modular structure for maximum flexibility - Easy installation and maintenance - Tested and guaranteed for reliable performance Technical Specifications / Features - Power: up to 7.5 kW AC, 4 kW DC - Flow rate: 0.3 to 25 l/min - Pressure: up to 370 bar - Modular structure: AC/DC motors, single/double gear pumps, plastic/metal tanks - Central manifold: die-cast aluminum, thousands of configurations - Integrated valves: pressure, flow, check, directional - Compatibility: Group 0/1 gear pumps, B14 motors (frame 71-112), Nema 56C/184TC, SAE08 cartridge valves - Maintenance: pre-assembled components, no washers/springs/nuts - Tested components: 100% leak-free, trouble-free operation - Wear resistance: hardened steel parts
