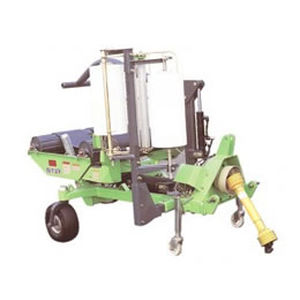

Individual bale wrapper MWM series
roundautomatic

individual bale wrapper
individual bale wrapper
Add to favorites
Compare this product


Characteristics

Type
individual
Bale type
round
Other characteristic
automatic

Description

MWM1060S/W is desined for wrapping films to the round bale made by medium round baler. Power package is equipped as standard for most controls. The operation does not need any hydraulic output from the tractor. Oil in the power package can be controlled independently without any contamination. All operations can be done from driver’s seat by manipulating a control box. MWM1060W : The number of wrapping is set and memoried in the control box. “Picking up the bale and wrapping” and “Unloading the bale” procedures are done automatically with pushing each button once. MWM1060S : The number of wrapping can be set easily with dial. Table rotation is started with pushing “Turn-table auto start switch”. When the number of wrappings reaches preset times, the table stop its rotation automatically. The ribbed steel rollers are driven by roller chains mechanically. Connecting the PTO shaft is required for rotation. In addition, 2 wrapping belts assist stable wrapping operation in case of non-good shaped bale. Since film stocker can be tilted horizontally, wrapping film is installed at a low position easily.

VIDEO
