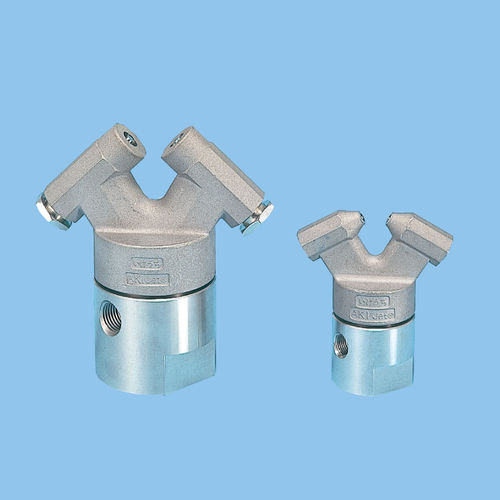

Brass nozzle AKIJet® series
misting

brass nozzle
brass nozzle
brass nozzle
Add to favorites
Compare this product


Characteristics

Material
brass
Type
misting

Description

Features • Full cone spray pneumatic nozzle producing fine and semi-fine atomization. • Atomized droplets are impinged against each other creating ultrasonic waves, which results in creation of a uniform distribution of even finer droplet sizes. • Liquid siphon feed type (liquid pressure device is not required). Use with the liquid pressure device is also possible. *1) Measured at compressed air pressure of 0.3–0.4 MPa and liquid pressure of 0–0.25 MPa. *2) Measured at compressed air pressure of 0.3–0.4 MPa. *3) Free passage diameter of liquid inlet. Applications • Cooling: Gas, steel plates, refractories, moldings, glass • Moisture control: Flue gas, concrete • Combustion: Oil, waste water • Others: Mixing two liquids, Spray drying Industries in which this nozzle is used • Steelmaking • Pollution Control • Paper & Pulp • Printing • Automotives Product specifications Structure • Comprising several parts: Nozzle body, adaptor, strainer, etc. • First, compressed air and liquid are mixed inside the nozzle for atomizing (Internal mixing type). Then air-stream entraining fine fog jets out from the nozzle and impinges against another air-stream of the same nature for shattering the fog into even finer, more-uniform droplets. • Liquid pressure type or Liquid siphon feed type. MaterialMain material: Stainless steel 303 and 316 (For details, see the component list below the drawing)

Catalogs

No catalogs are available for this product.

See all of Ikeuchi USA Inc‘s catalogs
