Overview

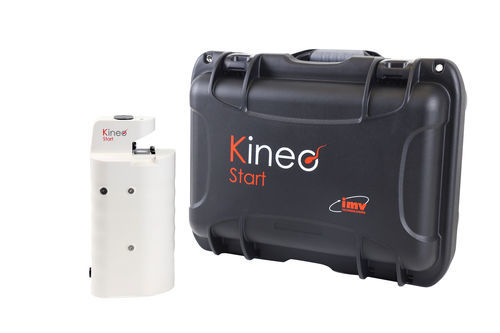

KINEO START is a compact semen analysis system designed to support both semen dose production and quality control. Simple to use, robust and portable, it helps production teams make informed decisions throughout semen processing while ensuring dose quality before insemination.

Key evaluation parameters

• Concentration
• Motility
• Progressive motility

Workflow
The workflow is simple: dilute the sample, load the KINEO Slide onto the heated stage, and perform the analysis with KINEO START.

Designed for simplicity
Developed with feedback from veterinarians, breeders and laboratory technicians, KINEO START features intuitive software, user-friendly hardware and step-by-step tutorials to enable operation without complex adjustments or extensive training.

Reliable results you can trust
KINEO START combines AI-powered imaging technology with focus-free imaging, automatic light adjustment and a manually heated stage to deliver fast, reliable semen analysis. Results are validated by recognized reference thresholds and by external validation (Spallanzani Institute).

Operational benefits

• Supports semen dose calculation and extender volume calculation
• Statistics dashboard for performance monitoring
• Sire database to monitor and compare sire performance
• Customizable official reports (allows adding your logo) to accompany semen shipments and demonstrate dose quality
• All analysis data is securely stored and remains accessible for traceability and decision support
• Compatible consumables: KINEO Slide (5 analyses)

Key Features

• Compact semen analyzer
• AI-powered imaging technology
• Focus-free imaging
• Automatic light adjustment
• Manual heated stage
• Semen dose calculation
• Extender volume calculation
• Statistics dashboard
• Sire database
• Customizable reports

Technical specifications

• Dimensions: 110 × 100 × 240 mm
• Weight: 1.47 kg
• Heated stage: 37°C ± 0.5°C
• Languages supported: French, English, Italian, Chinese, Spanish, Russian, Portuguese, Japanese, German, Vietnamese
• Compatible consumables: KINEO Slide (5 analyses)
• Minimum computer requirements: Intel® Core™ i5-1335U or Celeron J6412 @ 2.60 GHz; Intel® Iris® Xe Graphics or higher; 8 GB DDR4 RAM; 500 GB M.2 PCIe NVMe SSD; Windows 10 or later; Minimum one USB Type-C port compatible with USB 3.0
• References: Ref. 030424, 030425
