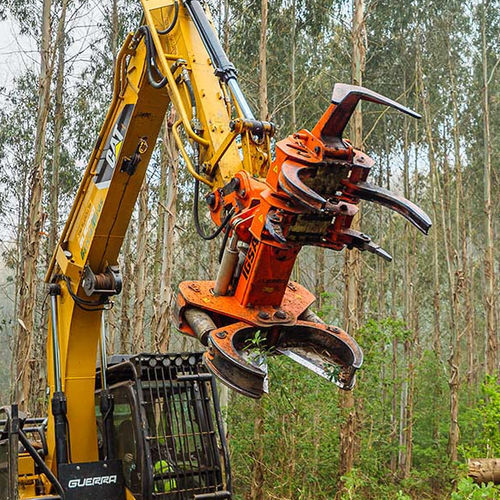

Felling head IGSA TC.800
Add to favorites
Compare this product
Characteristics
- Cutting diameter
80 cm
(31 in)
Description
The TC.800 is the perfect tool for working with large diameter and heavy trees
Cutting data
Cutting cycle (approx. fixed cutting) 12''
Two-blade shear cuttinq
Double claw system
2 claws for loq accumulation
Head oscillation 200 on each side
Hydraulic data
Cylinder force 1135 kN
Recommended flow 200-250 L/min
Maximum working pressure 300 bar
Recommended power 100 kW
2-hydraulic cylinder oscillating tilt 40°
Dimensions
Heiqht 2845 mm
Width 1920 mm
Lenqth 2090 mm
Approximate Weiqht 3900 kg
Catalogs
IGSA TC800
2 Pages
