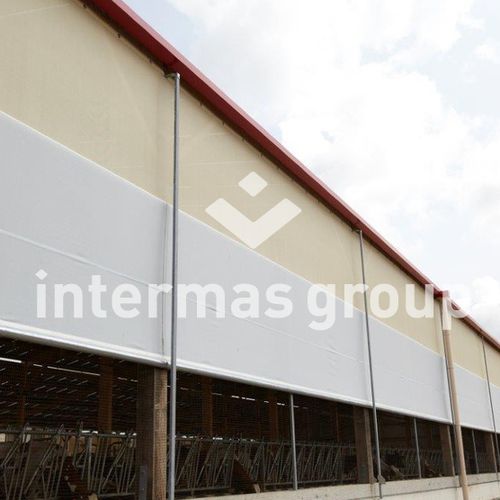

Wind protection netting CELLOROULEUR® DOUBLE

polyesterfor farm buildings

Winding system for windbreak higher than 3 meters For all the mobile systems it is possible to choose two types of shielding nets in polyester covered in PVC: EB 95 and EB 98. SPECIFICATIONS Made up of: • 1 windbreak with reinforcement in the upper part for fixing on the horizontal guide, run in the middle part fixed in the double winding tube and run in the lower part for fixing on the winding ballast tube. • 1 double-winding tube with double groove in aluminium. • 1 oblique tube in galvanised steel in the lower part for placing in front of the bars or in aluminium with double groove for placement with the lower edge, on the ground or on the bars projecting outwards. • 1 three-phase 400 V motor - industrial (winding from the bottom to the top) - rising speed 0.20 m/s. • 1 guide track with roll at the height of the motor side. • 1 vertical metallic guide in galvanised steel before every interval. • 2 internal panels in the windbreak at the ends. • 1 electronic command with 1 push-button control for manual raising and lowering. • Grey PVC corner to protect the parapet. • Grey PVC corner to protect the poles. • 1 emergency riser integrated into the system. • 1 set of accessories for fixing.
