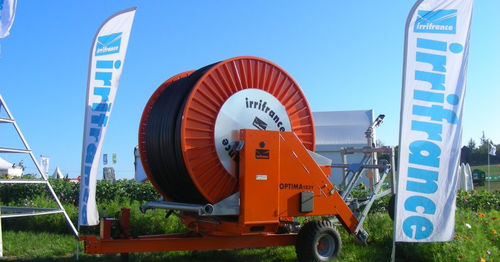

Turbine-drive irrigation hose reel OPTIMA

tractor-mounted

Overview
The IRRIFRANCE OPTIMA range includes road-homologated and standard irrigation hose reels designed for agricultural applications. Models are developed from user feedback to prioritise safety, ergonomics and durability for field use.

Dimensions
Available diameters: Ø63 to Ø135.

Lengths / Models
Available hose lengths from 225 m to 750 m. Models: 1005, 1010, 1015, 1020, 1021, 1027, 1032, 1037, 1045, 1055.

Lifting system suited to varied terrain

• Anti-spill articulated trolley, fully hot-dip galvanised.
• Equipped with runner or wheel kit according to configuration.
• Constant barrel angle irrespective of slope for consistent deployment.

High-performance multi-function turbine

• Turbine in cast iron or aluminium on selected models (1045, 1050 VPS and 1055).
• Large passage sections to reduce pressure loss.
• Wide flow range with high torque capacity.

Transmission

• Multi-gear gearbox suitable for irrigation, misting and spreading applications.
• Automatic unwinding brake.
• Re-winding via tractor PTO.

Winding safety

• Forward-position sensor (palpeur) to protect the PE pipe during winding.

Ground screws (anchoring)

• Hot-dip galvanised.
• Control options: manual, mechanical rack or hydraulic depending on version.

Stability and safety

• Mass distribution engineered for maximum stability in working and transport positions.
• Low centre of gravity.
• Automatic declutching by mechanical control.
• Reinforced and advanced ground support.

V-profile chassis

• High mechanical resistance.
• Height-adjustable coupling pin (except models 1005/1010).
• Options: galvanised finish or high-resistance epoxy paint.
• Fully hydraulic bogie chassis standard on selected models (1027, 1032, 1037 depending on version; 1045 and 1055 standard).

Turret rotation

• Manual with automatic locking on 1005-1010 series.
• Mechanical or hydraulic rotation on other versions.
• All-position rotation angle with high reduction for effortless rotation.
• Automatic locking system for safety.

Regulation system

• Electronic management, available with Irricontrol or Irridoseur options.

Control

• Monobloc assembly with solenoid valves and pressure switch.
• Motorised butterfly valve.
• Maximum protection for hydraulic and electrical components.

Hydraulic version option (basic on some models)

• From basic ground-screw control to two hydraulic functions (screws and rotation) depending on tractor distributor.
• Three hydraulic functions available from a distributor on the drawbar: ground screws, turret rotation and front jack.

Trolley equipment

• Remote monitoring and control: view status and receive alerts on smartphone, tablet or PC.
• Historic m3 and hourly consumption data.
• Plot management functions for farm operations.

Remote management

• Control, monitoring and alerts via mobile devices or PC.
• Historic flow and operating hours.
• Parcel/plot management.

Technical specifications

• Range name: OPTIMA.
• Brand: IRRIFRANCE.
• Diameters: Ø63 to Ø135.
• Hose lengths: 225 m to 750 m depending on model.
• Model series: 1005, 1010, 1015, 1020, 1021, 1027, 1032, 1037, 1045, 1055.
• Turbine materials: cast iron or aluminium on specific models (e.g. 1045, 1050 VPS, 1055).
• Gearbox: multi-gear for irrigation, misting and spreading.
• Automatic unwinding brake and PTO re-winding capability.
• Winding protection: forward-position sensor to protect PE pipe.
• Ground screws: hot-dip galvanised; control: manual, mechanical rack or hydraulic depending on version.
• Chassis: V-profile, adjustable coupling pin (except 1005/1010); galvanised or epoxy paint finish; hydraulic bogie on specified models.
• Turret rotation: manual with automatic locking (1005-1010) or mechanical/hydraulic on other versions; all-position rotation.
• Regulation: electronic management with Irricontrol or Irridoseur options.
• Control equipment: monobloc assembly with solenoid valves, pressure switch and motorised butterfly valve.
• Hydraulic options: from basic functions to three-function distributors on the drawbar (ground screws, rotation, front jack).
• Trolley & remote features: smartphone/tablet/PC monitoring, alerts, historic consumption and plot management.
