Rigid pipe LO-HIdischargehot galvanized
Add to favorites
Compare this product
Characteristics
- Type
- rigid
- Applications
- discharge
- Material
- hot galvanized
- Diameter
2 cm, 3 cm, 4 cm, 5 cm, 6 cm
(0.79 in, 1.18 in, 1.57 in, 1.97 in, 2.36 in)- Length
3 m, 6 m, 9 m
(9'10" , 19'08" , 29'06" )
Description
Description
Fixed, leak-proof LO-HI pipes designed to transport water over long distances at high pressure:
Accessories
A complete range of hot-dip galvanised steel accessories is available for this type of connector (inline T, 45° and 90° elbows, CIA T, CIA cross, cap, valve, etc.).
Technical data / specifications
Fixed, leak-proof LO-HI pipes designed to transport water over long distances at high pressure:
- Connectors used for pumping station accessories, suction and discharge systems.

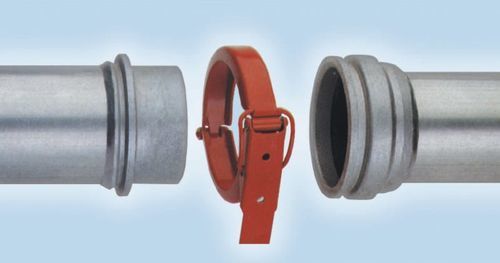

- Aluminium male and female connectors welded to each end of the aluminium pipe.
- Allows up to 30° angle in any plane between two pipes.
- Mechanical locking with two hooks.
- Sealed by an O-ring compressed into its housing during locking.
- Flow direction in the coupling: male to female.
Accessories
A complete range of hot-dip galvanised steel accessories is available for this type of connector (inline T, 45° and 90° elbows, CIA T, CIA cross, cap, valve, etc.).
Technical data / specifications
- Fixed, leak-proof pipes for high-pressure water transport over long distances.
- Aluminium male and female connectors welded at pipe ends.
- Coupling sealed by compressed O-ring.
- Mechanical two-hook locking system.
- Allowable angle between pipes: up to 30°.
- Flow direction in coupling: male to female.
- Compatible accessories: hot-dip galvanised steel inline T, 45° and 90° elbows, CIA T, CIA cross, caps, valves.
