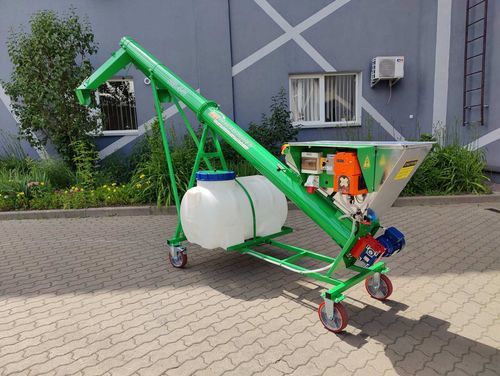

Automatic seed treater PNSh-5-01

manually-controlledcontinuouswith coating system

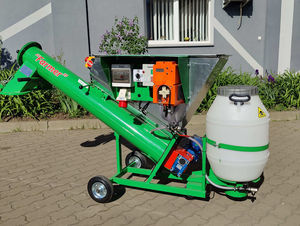

Seed Treater Machine PNSh-5-01 is an updated version of the PNSh-3-01 (P) screw-type seed treater machine, adapted for unloading treated seeds into "big-bag" type bags. The productivity of the seed treater has been increased to 5 t/h. This machine is specially designed for small farms. Its tasks include precise and high-quality treatment of leguminous crops. Characteristics: - Programmable peristaltic pump-dispenser of own production. This ensures even and high-quality seed coating, allowing for the use of both liquid and highly viscous solutions. - Paddle auger with polyurethane linings, preventing damage to crops such as corn, soybeans, sunflower, rapeseed, peas, and others. - Mobile machine, ensuring convenience and mobility in the farm. Advantages of the Seed Treater Machine: - Independence – You fully control the treatment process. - Time-saving – No need to wait for external service. The PNSh-5-01 is a combination of reliability, efficiency, and freedom in farming! Parameter name and size | Unit of measurement | Value --- | --- | --- Model | - | PNSh-5-01 Type | - | mobile Productivity per 1 hour of main time (on wheat seeds) | t/h | 1.0 to 5.0 Dry weight (structural), not more than | kg | 200 Capacity of the working liquid tank, not more than | dm³ | 250 Delivery of working liquid by the dispenser | dm³/min | 0.1 – 3.3 Power supply - from the AC power grid, voltage | V | 400 Power consumption | kW | 1.3 Seed loading height into the hopper, not more than | mm | 1230 Seed hopper volume, not less than | dm³ | 100 Height of use, not less - with the sector - without a sector | mm | 1700 1900 Overall dimensions in working/transport position, not more than - length - width - height | mm | 4140/2350 1360/1360 2540/1600 - Model: PNSh-5-01 - Type: mobile - Productivity: 1.0 to 5.0 t/h - Dry weight: 200 kg - Working liquid tank capacity: 250 dm³ - Dispenser delivery: 0.1 – 3.3 dm³/min - Power supply: 400 V - Power consumption: 1.3 kW - Seed loading height: 1230 mm - Seed hopper volume: 100 dm³ - Height of use: 1700 mm (with sector), 1900 mm (without sector) - Overall dimensions (working/transport): length 4140/2350 mm, width 1360/1360 mm, height 2540/1600 mm
