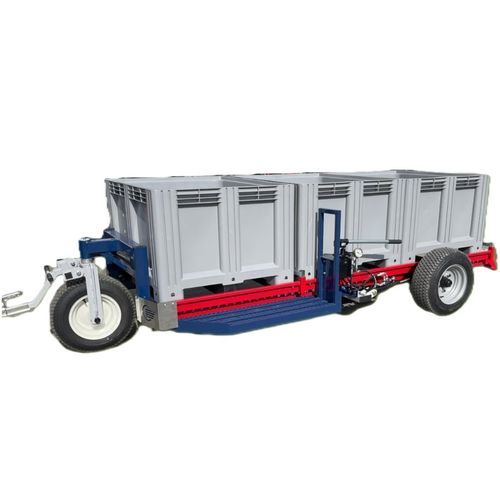

Arboriculture trailer H series

1 ton1.5 tonheavy-duty

General Information
Our orchard bin trailers are designed for efficient and reliable transport of filled fruit crates and pallet boxes in orchards. Available in multiple models—HM2 for 2 standard pallet boxes, HM3 and H3 for 3 pallet boxes, and HS3 for smaller bin boxes accommodating up to 4 wooden Euro pallets—these trailers ensure versatility for various orchard layouts. Self-unloading and compatible with berry harvesters as well as tree shaker harvesters, they can also be trailed behind tractors via a standard hitch ball for flexible operation. Built with a robust and durable frame, wide wheels, and rollers for smooth movement, these orchard trolleys provide enhanced stability, safe handling, and long-lasting performance for the transport of both empty and filled pallet boxes in orchard conditions.

HM2 and HM3 Orchard Bin Trailers

• Orchard bin trailers with rollers, available in HM2 (for 2 pallet boxes) and HM3 (for 3 pallet boxes), ensure efficient and reliable orchard transport of empty and full crates and pallets.
• Fully compatible with berry harvesters and tree shaker harvesters, and can be easily towed behind tractors via a standard hitch ball.
• Features easy box unloading via a hydraulic pump and two synchronized cylinders, with self-unloading trailers using roller wheels to ensure smooth and effortless box movement.
• Front directional wheel for easy maneuvering.
• The orchard bin trailer features a heavy-duty, durable frame with wide wheels and plastic rollers for smooth box movement.
• Ensures safe and stable transport of fruit bins during harvesting and moving, with anti-slip positioning, integrated blockers, and locks.
• HM3, and HM2 have wider steps close to bin on the trailer.

HS3 Orchard Bin Trailer for Small Boxes

• HS3 orchard bin trailer efficiently and reliably transports smaller bin boxes and larger containers, accommodating up to 4 wooden Euro pallets.
• Fully compatible with berry harvesters and easily trailed behind tractors via a hitch ball.
• Equipped with a front directional wheel for easy maneuvering in tight spaces.
• Includes a support tray for small bins, allowing direct fruit reception from the harvester.
• Built with robust tandem wheels on each side for maximum stability and durability in the field.
• Features an operator step with safety covers for safe and convenient handling of fruit bins during harvest and transport.

H3 Orchard Trolley for 3 Crates or Pallets

• Designed for efficient orchard transport of empty and full crates and pallets, accommodating up to 3 pallet boxes.
• Fully compatible with berry harvesters and tractors via a standard tractor beam connection for seamless field operation.
• Easy unloading: tilts when lifting the tractor beam, allowing pallet boxes to slide smoothly down the rollers to the ground.
• Built with a durable frame and dual wheels on each side, providing smooth, stable, and reliable box movement.
• Features an anti-slip design with integrated safety locks to ensure secure and safe transport of fruit bins and pallets in the orchard.

Technical Specifications
Model | HS3 | HM3 | HM2 | H3
Working Length | 4912 mm | 4019 mm | 2819 mm | 3620-4200 mm
Working Width | 1340 mm | 1833 mm | 1833 mm | 1450 mm
Working Height | 1505 mm | 1050 mm | 1050 mm | 441 mm
Dimensions of the box | 4 x EPAL 1 | 3 x (1200 x 1000) | 2 x (1200 x 1000) | 3 x (1200 x 1000)
No of wheels | 1 + 2 tandem wheels (4) | 1 + (2) | 1 + (2) | 2 Dual Wheels (4)
Load Capacity | 1500 kg | 1500 kg | 1000 kg | 1500 kg
Steps into bin | ✓ | ✓ | ✓ | ×
Transport Length | 4106 mm | 4019 mm | 2819 mm | 3620 mm
Transport Width | 1338 mm | 1833 mm | 1833 mm | 1450 mm
Transport Height | 933 mm | 712 mm | 712 mm | 441 mm
Net Weight | 500 kg | 320 kg | 270 kg | 260 kg

Key Features / Technical Specifications

• Multiple models: HS3, HM3, HM2, H3
• Load capacity: up to 1500 kg
• Compatible with berry and tree shaker harvesters
• Self-unloading and easy maneuvering
• Heavy-duty, durable frame
• Wide wheels and rollers for smooth movement
• Anti-slip, safety locks, and integrated blockers
• Operator step with safety covers (HS3)
• Support tray for small bins (HS3)
