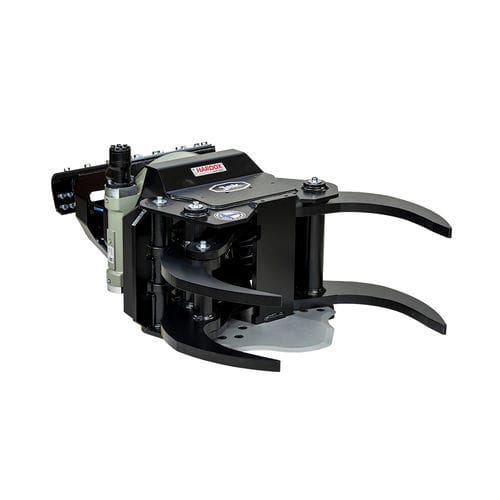

Crane tree shear 200R

forestrywith cutting bladeversatile

Equipped with the excavator adapter, the JAK-200R is a compact and efficient tree shear designed for use in smaller excavators. By changing the adapter to be connected to the back of the grapple, JAK-200R is also possible to harness for use in loaders and telehandlers, for example. Developed for heavy use, JAK-200R cuts the wood to be harvested neatly and precisely at the desired point. With this agile and strong tree shear, wood can be easily cleared up to tree trunks up to 20 cm (7,9 in) thick, which is why its possibilities of use are rather versatile. With the JAK-200R’s wide 600 mm (23,6 in) opening, it is also easy to cut several small trees at once. The JAK-200R’s design-protected structure takes an unmistakable grip on the desired wood material, allowing the pressed wood to be neatly cut. If necessary, the cutting blade can be removed, in which case the tree shear acts as a wood grapple. JAK-200R tree shear for excavators specifications Weight of the Treeshear: 142 kg (313 lbs) Weight of the excavator adapter: 29 kg (64lbs ) Cutting diameter: 200 mm (7,9 in) Working pressure: 200-300 bar (2900-4351 psi) Minimum oil flow: 30 l/min (7,9 gal/min) Height: 400 mm (15,7 in) Coupling Common excavator attachments In special order by customer’s machine type JAK-200R Tree shear features ➔ Warranty 2 years ➔ CE approved ➔ Made in Finland ➔ Removable blade ➔ Operation with two cylinders ➔ Made by Hardox Steel ➔ Agile and efficient
