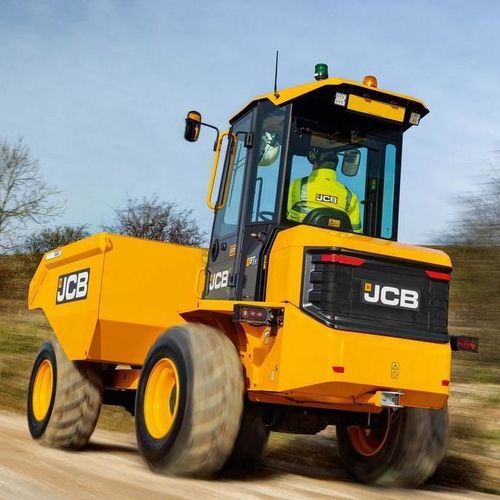

Wheeled mini dumper 9T

Overview
The largest site dumper in the range, the JCB 9T is a front-tip machine offering powerful material-handling capabilities.

Build quality and reliability

• State-of-the-art manufacturing and assembly techniques ensure high build quality.
• Skip constructed with thick steel sidewalls and heavy-duty steel front and base plates.
• Heavy-duty articulated chassis and skips designed for durability on tough sites.
• Finite element analysis and rig testing for superior structural strength; cold-start testing down to -15°C.

Safety

• Folding FOPS level II protection.
• Optional JCB SiTESAFE cab for operator safety and comfort.
• Front camera fitted as standard to expand operator visibility.
• Sequenced two-stage drive inhibit system: operator must be seated with lap belt engaged before driving.

Ultimate productivity

• Powered by a 55 kW JCB EcoMax engine (Tier 4 Final) optimised for power, torque and economy.
• 4-speed permanent 4WD powershuttle transmission for easy operation.
• Front or swivel tipping skip options to suit applications.
• Large oscillation angles maximise wheel-to-ground contact for improved off-road performance.

Ease of operation & serviceability

• Flat, clean skip design for effective material discharge and easy cleaning.
• Exceptional ground-level service access; tilting seat base provides maximum access.
• Designed for leading service access and reduced service time.
• JCB SiTESAFE cab is detachable for fleet flexibility and retrofit.

Technical specifications

• Payload: 9,000 kg
• Operating weight: 5,400 kg
• Max. engine power: 55 kW
• Power type: Diesel
• Enclosure type: Optional Cab
• Skip tipping type: Front Tip
