Dump trailer BR2-axlesingle-axle3-axle
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Construction
- dump
- Number of axles
- 2-axle, single-axle, 3-axle
- Application
- agricultural
- Payload
- 0 t...10 t, 10 t ... 20 t, 20 t...40 t
- Brake system
- with hydraulic braking, with pneumatic braking
- Other characteristic
- monocoque
- Empty weight
Max.: 10 t
(11 us ton)Min.: 3 t
(3.3 us ton)- Load volume
Max.: 50 m³
(1,765.733 ft³)Min.: 10 m³
(353.147 ft³)- Loading case lenght
Max.: 8.7 m
(28'06" )Min.: 4.4 m
(14'05" )- Loading case width
2.4 m
(7'10" )- Loading case hight
Max.: 1.6 m
(5'02" )Min.: 1.1 m
(3'07" )
Description

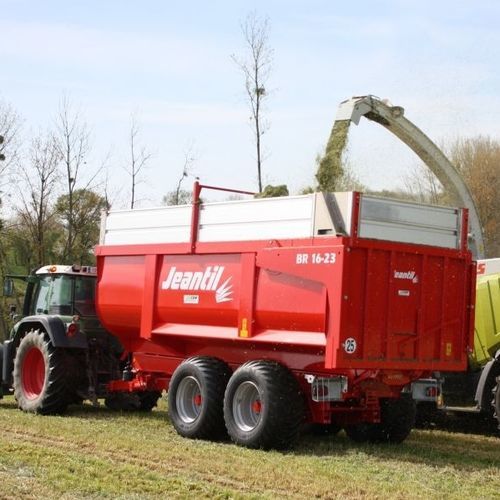

Make the most of the transport of low density products: large volume dumpers BR 8-14 to 24-
32 from 8 to 24 T (wide body 2.35 m and monobloc sides 1.08 m, 1.38 m or 1.58 m), hydraulic door and hydraulic stand, performance in transport (homologation at 25 or 40 km/h), hydraulic suspension 25 or 40 km/h, possibility of using silage extensions (300, 600 or 900 mm).
Protected ladder
Hydraulic locking system
Monobloc door 1 hatch
Door adjustment
Hydraulic door and built-in cylinder
Wider BR body : 2.35 m
Monobloc door 2 hatches
Large front window grid
