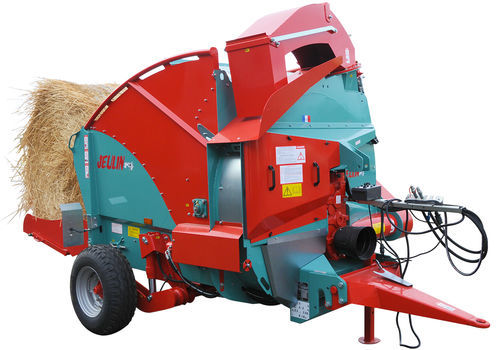

Towed straw blower HÉLICUT

mountedbeddingfor round bales

Product overview
The HÉLICUT is a straw blower specifically designed to produce short straw lengths, meeting the needs of livestock farms looking for uniform, comfortable, and cost-effective bedding. Thanks to its high-performance unravelling system, large-diameter turbine and interchangeable screens, it allows the straw length to be easily adjusted to suit the requirements of each operation. Available in mounted or trailed versions, the HÉLICUT combines performance, ease of use and reliability to deliver fast, precise and consistent straw spreading.

Standard equipment

• Hydraulic rear door with 2 push cylinders mounted with clevis fittings

Unravelling – Distribution – Straw Blowing

• 1 unravelling rotor Ø 380 mm, mechanically driven by a multi-rib belt fitted with 120 blades
• Ø 1,600 mm turbine equipped with 8 removable blades
• 320 mm wide turbine housing made of abrasion-resistant steel (430 HB Brinell hardness)
• Turbine inspection hatch
• 2-speed gearbox – 540 / 1,000 rpm
• Right-hand side straw distribution/blowing chute operated by 1 hydraulic cylinder
• Right-hand straw blowing for round bales up to Ø 2.0 m and square bales up to 2.70 m long
• 1 sizing screen (straw lengths from 40 to 140 mm) with retaining fingers — 140 blades – 11 retainers

Moving Floor

• Ø 10 mm heavy-duty marine chain conveyor with removable rectangular tube slats and machined ends®
• Hydraulic gear motor drive with oil bath, forward and reverse operation, and electric speed control
• Conveyor rotation direction indicator

Design – Safety

• Removable floor and side panels
• Double sealed floor with rear cleaning hatch
• Hinged, bolted safety guards
• Dust protection flap

Controls

• Electric control box operating all machine functions, with portable in-cab control unit

Mounted version – Road transport

• Category III hitch bar supplied

Trailed version – Road transport

• Drawbar with Category II hitch bar
• Hydraulic steering axle operated by two cylinders
• Articulated rear lighting compliant with road regulations
• Parking stand with adjustment holes

Machine compliance
Machine compliant with CE standards and approved by DREAL.

Driveline

• PTO shaft with friction clutch safety protection and machine-side protective guard

Tractor requirements

• 540 rpm PTO
• 12 V / 3-pin electrical socket for the electric control unit
• 12 V / 7-pin electrical socket for lighting (trailed version)
• 1 single-acting hydraulic spool valve with direct return to tank
• Minimum hydraulic flow: 25 L/min

Interchangeable screens (supplied as standard with one of three interchangeable screen models)

• Screen 1: Short straw — 4–10 mm
• Screen 2: Medium straw — 20–50 mm
• Screen 3: Long straw — 80–140 mm

Note
Straw length values are average values and may vary depending on the number of retainers installed on the machine.

Optional / Additional equipment (selection)

• 300° swivelling single discharge chute
• Right-hand side distribution/blowing chute with 30° forward and rearward hydraulic deflection (overall width: 2.55 m)
• 60° side chute (requires the optional right-hand side distribution/blowing chute with 30° forward and rearward deflection)
• Hydraulic cylinder for chute deflector (side chute or single chute)
• Multi-disc wet clutch for mechanical drive of the unravelling rotor
• Electric gearbox shifting operated from the turbine control box
• Additional rear left-hand electric controls (conveyor and rear door)
• 500 mm rear door extension
• Articulated rear lighting compliant with road regulations (mounted version)
• Half wide-angle PTO shaft, tractor side, with safety guard
• Long drawbar with manual parking stand, without hitch bar (clevis hitch)
• Articulated drawbar for trailed version
• Misting system with 4 nozzles and 80 L tank
• Spare wheel 10/75 × 15.3
• Category II hitch bar
• Trailed conversion kit (retrofit after delivery)
• Ground protection roller kit

Technical specifications

• Type: Mixing straw blower available in mounted or trailed versions
• Unravelling rotor: Ø 380 mm, mechanically driven, multi-rib belt, 120 blades
• Turbine: Ø 1,600 mm with 8 removable blades; turbine housing 320 mm wide in abrasion-resistant steel (430 HB)
• Turbine inspection hatch provided
• Gearbox: 2-speed (540 / 1,000 rpm)
• Sizing screens (interchangeable): short (4–10 mm), medium (20–50 mm), long (80–140 mm)
• Moving floor: Ø 10 mm heavy-duty marine chain with removable rectangular tube slats and machined ends®; hydraulic gear motor with oil bath, forward/reverse and electric speed control
• Controls: electric control box + portable in-cab unit
• Driveline safety: PTO shaft with friction clutch safety protection and machine-side protective guard
• Tractor hookups: 540 rpm PTO; 12 V / 3-pin socket for control; 12 V / 7-pin socket for lighting (trailed); 1 single-acting hydraulic spool with direct return; min. hydraulic flow 25 L/min
• Right-hand distribution for round bales up to Ø 2.0 m and square bales up to 2.70 m long
• CE compliant; approved by DREAL
