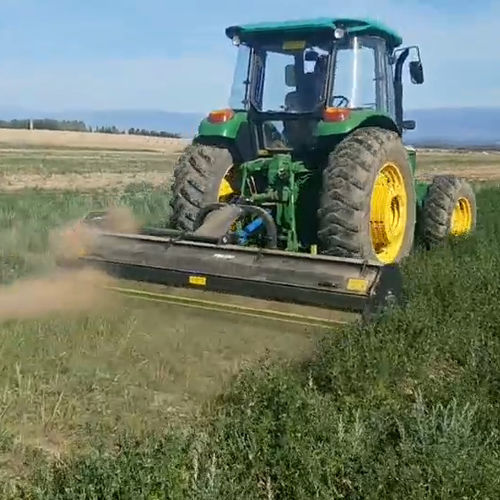

Mounted mower FM165-205
flailPTO-drivenrough grass

mounted mower
mounted mower
mounted mower
mounted mower
Add to favorites
Compare this product


Characteristics

Mounting
mounted
Technology
flail
Other characteristic
PTO-driven, rough grass, for tractors
Working width

Max.: 2,050 mm
(80.71 in)

Min.: 1,650 mm
(64.96 in)

Power required

Max.: 52 kW
(70.7 hp)

Min.: 37 kW
(50.3 hp)

PTO speed

540 rpm
(3,392.9 rad.min-1)

Weight

395 kg, 420 kg, 435 kg
(870.8 lb, 925.9 lb, 959 lb)

Description

FM standard series are rear mounted,PTO driven flail mowers for tractors, working width varies from 1,650 to 2,050mm,power demand 50-70HP.FM series are designed for general maintenance of lawn,park,orchard,meadow and weed cut for undeveloped areas. The mowers cut the grass and spread it properly crumbled along the whole width of the cut surface. It enables forming a natural swath and plant offcut mineralization. Perfect ground following and even cutting height Automatically Belt-tension Overrunning clutch integrated with gearbox Housing can be lifted to leave the residues back to the field Offset Options:SD swing arm or HD swing arm Guard Options:Chain guard or metal plate guard Blade Options:Hammer or Y Blades SD550 could pass the obstacle and automatically return,HD550 could detect obstacles hydraulicly without touching.
