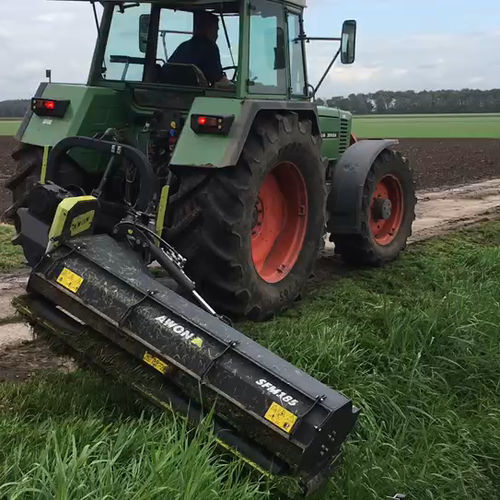

Rear-mount mulcher SFM165-205
offsethammerfor orchards

rear-mount mulcher
rear-mount mulcher
rear-mount mulcher
rear-mount mulcher
rear-mount mulcher
rear-mount mulcher
rear-mount mulcher
rear-mount mulcher
rear-mount mulcher
Add to favorites
Compare this product


Characteristics

Type
rear-mount, offset
Technology
hammer
Applications
for orchards, roadside, vineyard
Number of hammers
22 hammers, 26 hammers
Other characteristic
PTO-driven, hydraulic, for tractors, offset, in-line, for fallow fields
Cutting width

Min.: 1.65 m
(5'04" )

Max.: 2.05 m
(6'08" )

Rotational speed

540 rpm
(3,393 rad.min-1)

Tractor power

Min.: 45 kW
(61.2 hp)

Max.: 60 kW
(81.6 hp)

Weight

443 kg, 460 kg, 507 kg
(976.65 lb, 1,014.13 lb, 1,117.74 lb)

Description

SFM rear-side series are rear mounted,PTO driven flail mowers for tractors,working width varies from 1,650 to 2,050mm,power demand 60-80HP.SFM series can be typically aggregated with tractors with 3-point hitch of Cat. Or Ⅱ.SFM with parallelogram arm, enables operation in-line or at the side of the tractor. Down-tilt angle can reach up to 45°, which is perfect whenever road shoulders and slopes need to be mowed (tilt angle between -45°; +90°) SFM series are specially designed for carriageway maintenance, green belts,scarps,embankments,road shoulders or ditches. The mowers cut the grass and spread it properly crumbled along the whole width of the cut surface. It enables forming a natural swath and plant offcut mineralization. SFM with paralellogram arm, enables operation in-line or at the side of the tractor. Down-tilt angle can reach up to 45°, which is perfect whenever road shoulders and slopes need to be mowed (tilt angle between -45°; +90°). Fittings Selection Offset Options:SD swing arm or HD swing arm Guard Options:Chain guard or metal plate guard Blade Options:Hammer or Y Blades SD550 could pass the obstacle and automatically return,HD550 could detect obstacles hydraulicly without touching.
