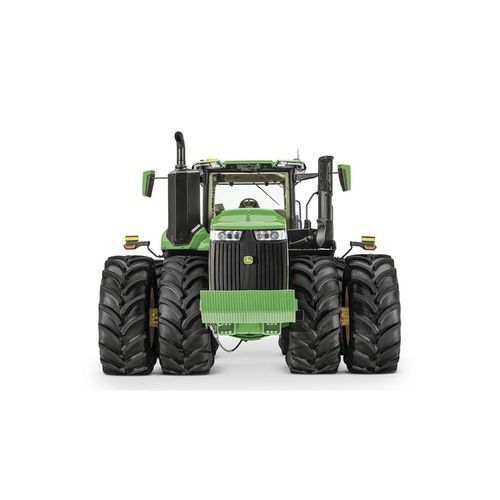

Power-shift tractor 9R 390
for row cropscompactwith cab

power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
power-shift tractor
Add to favorites
Compare this product


Characteristics

Transmission
power-shift
Applications
for row crops
Other characteristic
compact, 4 wheel drive, high horsepower, with cab
Engine power

Min.: 390 ch
(390 hp)

Max.: 429 ch
(429 hp)

Displacement

14 l
(4 gal)

Wheelbase

3,912 mm
(154 in)

PTO speed

2,100 rpm
(13,194.7 rad.min-1)

Torque

1,800 Nm
(1,328 ft.lb)

Fuel tank capacity

1,514 l
(400 gal)

Total length

7,945 mm, 8,427 mm
(312.8 in, 331.8 in)

Weight

20,856 kg
(45,979.6 lb)

Description

• Engine HP1: 429 Max / 390 Rated • Fully integrated precision ag technology • e18™ PowerShift Transmission • Choice of three different cab and visibility packages - Improved Selection Control Valve (SCV) configurations The 9-series tractor plumbing is designed for max flow so there will be no restrictions in the system making it fast, easy, and cost effective if there is a need to switch between 1.3 cm (0.5 in.) and 1.9 cm (0.75 in.) couplers. Making the change between SCV coupler size will require a new housing and dust protection shield compared to a new SCV slice. NOTE: Up to six SCVs can be factory installed. 9 Series Tractors can add SCV 7 and SCV 8 as field-installed attachments. See Aftermarket kits for details. - JD14 (13.6L/827-cu in.) engine: real world usability, not just power on paper The JD14 (13.6L/827-cu in.) engine from John Deere Power Systems has the power to handle heavy draft disks and rippers, hydraulically demanding air seeders and planters, and large transport loads like grain carts and slurry wagons. With a durable design and heavy-duty components, you can depend on the Final Tier 4 (FT4)/Stage V compliant JD14 engine, standard in the 291 to 471 engine kW (390 to 640 engine hp) 9 Series Tractors.
