Tractor backhoe BH160

hydraulic

Overview

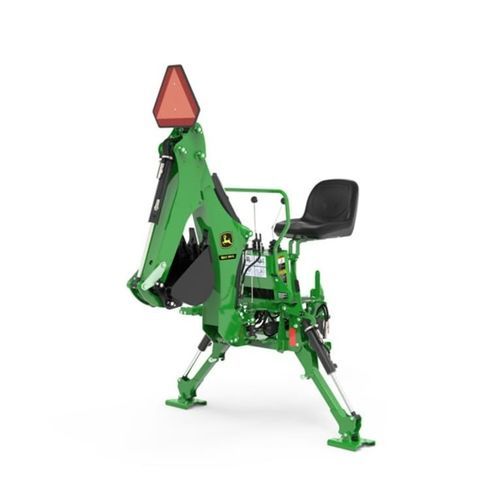

• The BH160 is a tractor-mounted backhoe designed to deliver class‑leading features at a competitive price for small and mid‑size tractors. Units were benchmarked to ensure fit, performance and value for agricultural and utility applications.

Key product highlights

• Easy on/off attachment for quick operator access
• Smooth, precise controls for accurate digging and trenching
• Tool-free removal after initial installation
• Digging depth approx. 1.9 m (6 ft 2 in)

Performance overview features

• Mid‑mower‑deck compatible to allow compound equipment use
• Durable subframe adds strength to tractor frame and transmission
• Protective rubber boots on backhoe controls
• Bucket options: 203 mm (8 in), 304 mm (12 in), 406 mm (16 in), plus 178 mm (7 in) trenching bucket with bolt‑on replaceable teeth
• Optional ripper, rubber street pads for stabilizers, and mechanical or hydraulic thumb kits

Operator comfort

• Ergonomically positioned controls reachable from the operator platform in backhoe position
• High‑back seat and non‑slip operator platform for prolonged jobs
• ROPS and grab handles plus large boarding step for a secure three‑point stance on mount/dismount
• Stabilizer, boom and swing locks accessible from the seat with dedicated storage when stowed

Easy installation and removal (summary)

• Installation (abbreviated): Back tractor within ~20 cm (8 in) of backhoe, park and secure tractor; connect power‑beyond hydraulics; remove boom‑lock pin; align frame and mounts; use stabilizers and install mounting pins; secure backhoe for operation.
• Removal (abbreviated): Lower stabilizers slightly; center boom and install swing lock; remove mounting pins; lower backhoe to ground; disconnect hydraulics and stow hoses; drive tractor away.

Subframe and hydraulics

• Subframe transfers backhoe loads to tractor frame and transmission without compromising integrity
• Fully mid‑mower‑deck compatible regardless of mower lift system
• Power‑beyond hydraulics required on tractor (power‑beyond kit not included with subframe)
• Tire chains are not compatible when subframe is installed

Transportation and storage

• Two locking pins secure swing frame and boom for safe transport/storage; pins store in operator platform to prevent loss
• Ramp angle ~20° for easy loading on most trailers and improved handling over rough ground

Structure and serviceability

• Enclosed boom and dipper designed for strength; boom/dipper/bucket cylinders are externally mounted for easy service
• Continuous boom construction for greater rigidity and fewer welded joints
• All cylinders serviceable and rebuildable; boom cylinder includes internal cushion and circuit relief to protect rods
• Internal seals are the same as those used on larger John Deere backhoes

Buckets

• Available bucket widths: 203 mm (8 in), 304 mm (12 in), 406 mm (16 in); plus 178 mm (7 in) trenching bucket
• Replaceable bolt‑on digging teeth (203 mm = 2 teeth; 304/406 mm = 3 teeth)
• Buckets include heavy‑duty roll tube for added strength

Bucket specifications (table represented as rows)
Headers: , 203‑mm (8‑in.) bucket, 304‑mm (12‑in.) bucket, 406‑mm (16‑in.) bucket, 178‑mm (7‑in.) trenching bucket
SAE struck capacity: 0.011 m3 (0.42 cu ft), 0.019 m3 (0.66 cu ft), 0.025 m3 (0.90 cu ft), 0.0045 m3 (0.16 cu ft)
Heaped capacity: 0.013 m3 (0.46 cu ft), 0.022 m3 (0.76 cu ft), 0.030 m3 (1.06 cu ft), 0.0057 m3 (0.20 cu ft)
Shipping weight: 17 kg (38 lb), 22 kg (49 lb), 27 kg (59 lb), 16.2 kg (35.8 lb)

Backhoe attachments & new features

• Pre‑drilled mainframe for LED work light brackets and knockout for switch—no cutting required
• Work lights mount on dipper to illuminate bucket work area
• Optional rubber floor mats reduce vibration, improve grip and protect paint; easily cleaned

Ordering / availability notes (region-specific)

• BH160 base code: 6210LV (region and order dates apply)
• Region: Region 4 (US/Canada) referenced for specific introduction/ordering information

Characteristics / technical specifications

• Model: BH160
• Digging depth: 1.9 m (6 ft, 2 in)
• SAE dipperstick digging force: 5,280 N (538 kg / 1,187 lb)
• SAE bucket digging force: 9,056 N (924 kg / 2,036 lb)
• Swing arc: 150°
• Boom lift capacity: 129 kg (285 lb)
• Transport height: 1.7 m (6 ft, 6 in)
• Stabilizers spread width (up): 1.5 m (4 ft, 10 in)
• Stabilizers spread width (down): 1.9 m (6 ft, 2 in)
• Bucket widths supported: 0.203 m, 0.304 m, 0.406 m
• Reach from center line of swing pivot: 2.6 m (8 ft, 8 in)
• Loading height (bucket at 60°): 1.5 m (5 ft)
• Transport overhang: 0.9 m (3 ft, 1 in)
• Undercut: 0.4 m (1 ft, 5 in)
• Stabilizer type: Hydraulic
• Operating weight with 0.4‑m (16‑in.) bucket: 309 kg (682 lb); including subframe: 334 kg (736 lb)
