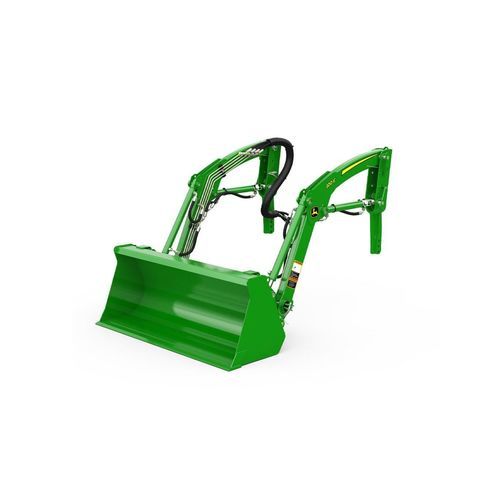

Compact tractor front loader 120E

Overview

• Compatible with 1023E and 1026R Tractors
• Curved boom design
• Quik-Change attachment carrier standard
• Parkable (parking mounting system for easy removal and mounting)

Features
The parking mounting system on the 120E Loader is designed for easy removal and mounting to and from the tractor without tools. Similar to that of the D120, the 120E parking stands are kept in the torque tube for easy accessibility. To park the loader, install parking stands, remove pivot pins from the mast, disconnect the hydraulic hoses, and back out the tractor.

End-of-pin lubrication on cylinder and pivot pins allows easy access for servicing grease points. The unique offset head design eliminates cross-pins and cotter pins to retain the pin. A nut ensures the pins remain in position. A lubrication groove provides a path for lubrication. End-of-pin lubrication points are visible from the side of the loader for easy servicing.

Key specifications (summary)
Maximum lift height: 1809 mm / 71.2 in.
Lift capacity at full height (measured at pivot): 375 kg / 825 lb; measured at 500 mm ahead of pivot: 259 kg / 570 lb.
Boom breakout force (measured at pivot): 806 kg / 1808 lb; measured at 500 mm ahead of pivot: 552 kg / 1238 lb.
Bucket rollback force capacity (at ground-level line): 707 kg / 1559 lb.
Clearance at full height (bucket dumped): 1371 mm / 54 in.
Dump angle: -40.1 degrees.
Rollback angle: 31.2 degrees.

Tractor compatibility & hydraulic
Compatible tractor models: 1023E / 1026R.
Front tire: 18x8.5-10 4PR R4.
Rear tire: 26x12.00-12 4PR R4.
Wheelbase: 1450 mm / 57 in.
Pump capacity: 3.5 gpm.
Rated pressure: 1987 psi.

Loader dimensions & performance details
Base weight: 220.5 kg.
Bucket used: Pin on Materials 1250 mm / 49 in.
Bucket weight: 53 kg / 117 lb.
Lift capacity at 59 in. (1500 mm) measured at pivot: 429 kg / 944 lb; measured at 500 mm ahead of pivot: 309 kg / 680 lb.
Bucket rollback force capacity: at maximum height 593 kg / 1330 lb; at 59 in. (1500 mm) 711 kg / 1568 lb; at ground-level line 707 kg / 1559 lb.
Dimensions: overall length 2.6 m / 8.6 ft. Maximum lift height 1809 mm / 71.2 in; at full height bucket level 1653 mm / 65.1 in; at full height bucket dumped 1371 mm / 54 in.
Digging depth: -101 mm / -4.0 in.
Reach: at maximum height 571 mm / 22.5 in; at ground level - bucket level 1176 mm / 46.3 in.
Bucket angles: dump angle -40.1°; rollback angle 31.2°; dump angle, ground -114.0°.
Cycle times: loader raise 4.0 s; loader lower 2.5 s; bucket dump 5.7 s (without regen) / 2.2 s (with regen); bucket rollback 3.5 s.

Caractéristiques / spécifications techniques

• Model (denomination commerciale): 120E
• Brand: John Deere
• Compatible tractors: 1023E / 1026R
• Maximum lift height: 1809 mm / 71.2 in
• Lift capacity at full height (pivot): 375 kg / 825 lb; at 500 mm ahead of pivot: 259 kg / 570 lb
• Lift capacity at 59 in. (1500 mm) (pivot): 429 kg / 944 lb; at 500 mm ahead of pivot: 309 kg / 680 lb
• Boom breakout force (pivot): 806 kg / 1808 lb; (500 mm ahead): 552 kg / 1238 lb
• Bucket rollback force capacity: max height 593 kg / 1330 lb; 59 in. 711 kg / 1568 lb; ground-level 707 kg / 1559 lb
• Clearance at full height (bucket dumped): 1371 mm / 54 in
• Bucket weight: 53 kg / 117 lb
• Base weight: 220.5 kg
• Bucket used: Pin on Materials 1250 mm / 49 in
• Overall length: 2.6 m / 8.6 ft
• Wheelbase: 1450 mm / 57 in
• Digging depth: -101 mm / -4.0 in
• Reach at max height: 571 mm / 22.5 in; reach at ground level: 1176 mm / 46.3 in
• Pump capacity: 3.5 gpm
• Rated pressure: 1987 psi
• Cycle times: raise 4.0 s; lower 2.5 s; bucket dump 5.7 s (without regen) / 2.2 s (with regen); bucket rollback 3.5 s
• Curved boom design; Quik-Change attachment carrier standard; parkable with parking mounting system; end-of-pin lubrication for easy servicing
