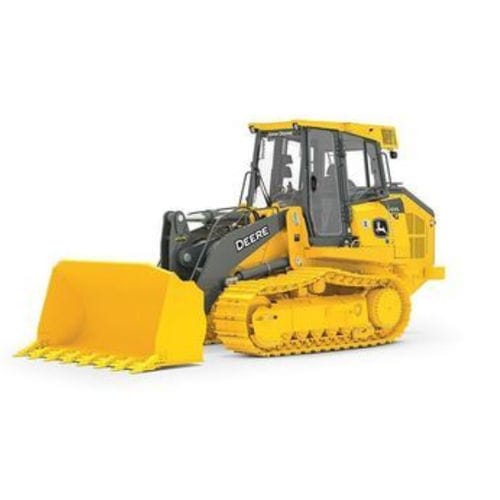

Crawler loader 655 P-Tier

with cab

Overview

• Net Power: 116 kW (155 hp) at 1,700 rpm
• Operating Weight: 18 422 kg (40,614 lb.)
• Heaped Capacity: 1.6–1.9 m³ (2.1–2.4 cu. yd.)
• Breakout Force: 148 kN (33,271 lbf)

Cab — Achieve comfort and increased productivity in a spacious cab

Looking for a way to increase productivity by keeping operators comfortable? All P-Tier cabs are comfortable, quiet, and more spacious than previous models. Operators will appreciate fatigue-beating ergonomics that include extensive leg room, wide doorways, and user-friendly pull-type latches to ease entry and exit from both sides of the machine.

• Quiet operation – Viscous cab mounts, rear acoustical glass, and extensive insulation isolate operators from vibration and noise.
• Climate control – Air conditioning is standard; numerous directional vents and a pressurized cab reduce contaminants and keep the interior comfortable.
• Seats – Standard high-back air-suspension seat with multiple adjustments; deluxe heated and leather-bolstered optional.
• Conveniences – 12-volt power port, tinted windows, AM/FM/WB radio and clock.

Serviceability — Eliminate downtime with increased serviceability

Easy-to-access service doors, onboard diagnostics, automatic filter cleaning, and an innovative cooling system help maximize uptime and simplify maintenance.

• Durable undercarriage – Heavy-duty sealed and lubricated undercarriage for maximum wear resistance.
• Diagnostics – LCD monitor displays diagnostic messages and suggested solutions.
• Debris removal – Swing-out side shields and tilt-out grille enable easy debris removal.
• Quad-Cool™ system – Radiator, A/C condenser, intercooler, and hydraulic/transmission/axle coolers are boxed and isolated from engine heat.
• In-cab monitoring – Hydrostatic and hydraulic pressures readable via in-cab monitor.

Controls — Increase functionality with single- or three-lever controls

State-of-the-art controls provide full command of hydrostatic advantages. Options include single-lever joystick, two- or three-lever hydraulic controls, Joystick F-N-R, or V-pattern transmission lever with steering pedals.

• HST advantages – Full power turns, infinitely variable track speeds, and unlimited maneuverability.
• Choice of controls – Single-lever joystick, two- or three-lever hydraulic controls, V-pattern lever, steering pedals.
• Smooth operation – Predictable response reduces abrupt movements.
• Push-button throttle – Sealed switch module allows full or incremental throttle adjustments.

Engine & Fuel Economy

Final Tier 4 (FT4) PowerTech™ PVS 6.8L engine integrated for optimized performance and maintenance. Standard Eco mode and auto-idle/shutdown features improve fuel efficiency without sacrificing performance.

• Engine – PowerTech PVS 6068 (6.8 L)
• Power increase – 155 hp (655 P-Tier)
• Eco mode – Automatically adjusts engine/transmission based on load.
• Auto-idle/auto-shutdown – Reduces fuel use during inactivity.

Power Management and Drivetrain

Hydrostatic (HST) dual-path transmission provides smooth moves, infinite speed control, live power turns, and individual track power for durability and maneuverability. Multiple operator preference settings available.

• Transmission – Hydrostatic dual-path HST
• Individual track power – Each track has its own pump and motor.
• Power management – Maintains peak engine rpm and efficiency while preventing stalls.

Driveline
Engine Manufacturer: John Deere
Engine Model: PowerTech PVS 6068
Displacement: 6.8 L (414 in³)
Rated Speed: 1700 rpm
Engine Output - Net: 116 kW (155 hp)
Transmission type: Hydrostatic
Track rollers per side - std: 6
Track shoe pitch: 190 mm (7.5 in)
Track shoe width: 510 mm (20 in)
Ground Contact Area: 24,622 cm² (3,816 in²)
Track shoes per side - std: 38

Dimensions
Overall length: 6,735 mm (22 ft 1 in)
Max. height: 3,120 mm (10 ft 3 in)
Track length on ground: 2,414 mm (95 in)
Ground clearance: 395 mm (15.6 in)
Track gauge - standard: 1,740 mm (5 ft 9 in)
Shovel 1 width: 2,470 mm (8 ft 1 in)
Shovel 1 dump height 45° max: 2,665 mm (8 ft 9 in)
Bucket pin height: 3,710 mm (12 ft 2 in)
Digging depth: 152 mm (6 in)

Capacities
Fuel tank capacity: 263 L (69.5 US gal)
Implement hydraulic tank: 121.5 L (32.1 US gal)
Shovel 1 capacity: 1.9 m³ (2.4 yd³)

Performance
Ground bearing pressure - standard: 73.7 kPa (10.7 psi)
Static tipping load shovel 1: 12,443 kg (27,432 lb)
Pump type: Piston Pump - Load Sensed
Pump flow: 189 L/min (50 US gal/min)
Relief pressure: 26,028 kPa (3,775 psi)

Weights
Operating weight std: 18,422 kg (40,614 lb)

Caractéristiques / Spécifications techniques

• Model: 655 P-Tier
• Category: Crawler Loader
• Brand: John Deere
• Engine: PowerTech PVS 6068, 6.8 L
• Net power: 116 kW (155 hp) @ 1,700 rpm
• Operating weight: 18,422 kg (40,614 lb)
• Heaped bucket capacity: 1.6–1.9 m³ (2.1–2.4 yd³)
• Breakout force: 148 kN (33,271 lbf)
• Transmission: Hydrostatic (HST) dual-path
• Track shoe width: 510 mm (20 in); pitch: 190 mm (7.5 in); 38 shoes per side
• Ground contact area: 24,622 cm² (3,816 in²)
• Overall length: 6,735 mm (22 ft 1 in); max height: 3,120 mm (10 ft 3 in)
• Fuel tank: 263 L (69.5 US gal); implement hydraulic tank: 121.5 L (32.1 US gal)
• Shovel (bucket) capacity: 1.9 m³ (2.4 yd³); shovel width: 2,470 mm (8 ft 1 in)
• Pump flow: 189 L/min (50 US gal/min); pump type: piston pump, load sensed
• Notable systems: Quad-Cool™ cooling configuration; onboard diagnostics; standard air conditioning; Eco mode; auto-idle/auto-shutdown
