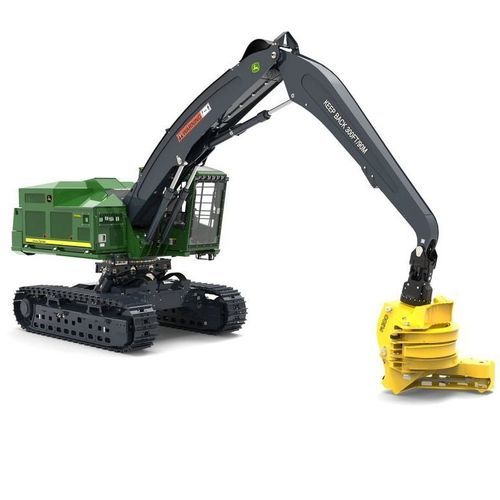

Tracked forestry harvester 959ML
slope

Tracked forestry harvester - 959ML - John Deere Forestry - slope
Tracked forestry harvester - 959ML - John Deere Forestry - slope
Tracked forestry harvester - 959ML - John Deere Forestry - slope - image - 2
Add to favorites
Compare this product

Characteristics

Type
tracked
Other characteristics
slope
Engine power

246 kW
(334 hp)

Description

Overview
  • Model: 959ML Shovel Logger/Directional Feller
  • Net Power: 246 kW (330 hp) at 1,900 rpm
  • Max. Boom Reach: 10.34 m (33 ft. 11 in.) / 11.00 m (36 ft. 1 in.)
  • Tractive Effort: 373 kN (83,880 lbf)


Operate in comfort
  • Large operator station developed with operator input for improved ergonomics
  • Ergonomic controls and increased cab volume compared with prior models
  • Floor-to-ceiling front window, large side windows, skylight, and optional floor window (standard on leveling machines) expand operator visibility
  • Optional heated and ventilated seat


Precision Forestry solutions
  • JDLink telematic system included in base machine for machine monitoring and connectivity
  • John Deere Connected Support enables remote diagnostics and rapid service response to maximize uptime
  • Machine Health Monitoring Center analyzes connected-machine data to identify trends and recommend preventive actions
  • TimberMatic Maps enhances jobsite visibility and streamlines communication
  • TimberManager provides remote visibility to operations from any device with real-time production data


Serviceability within easy reach
  • Fully opened enclosure and service doors provide excellent access to scheduled maintenance areas
  • Smart debris-management design reduces debris build-up around workspaces
  • Variable-speed reversing fan helps minimize debris in the cooling package
  • Swing-out doors allow wide-open access to the cooling package
  • Optional vacuum pump for convenient servicing of hydraulic components
  • Grease banks for servicing hard-to-reach joints
  • Large fuel tank (1080 L) extends intervals between refills
  • Remote diagnostics and machine monitoring via JDLink


Sure-footed stability
  • Long, wide undercarriage provides solid balance and maximizes stability
  • High tractive effort for negotiating steep or difficult terrain, deep snow, and swamps
  • Various track pad widths and grouser types available to suit applications
  • Optional tri-track helps prevent premature wear from track twisting


Maximize stability on steep slopes
  • Expansive leveling envelope tilts up to 26 degrees forward for steep-slope operation
  • Common undercarriage between 859M and 959M leveling machines maximizes boom and swing performance on slopes
  • Optional slope-monitoring system measures ground-slope angle and displays it on the in-cab monitor


Specifications / Technical data
  • Driveline: Engine Manufacturer: John Deere; Engine Model: PowerTech Plus 6090PSS; Displacement: 9 L (549 in³); Engine Output: 246 kW (330 hp); Engine Torque: 1527 Nm (1126 lbf·ft); Carrier Rollers - Each Side: 2; Track Rollers - Each Side: 10; Track Shoe Width: 610 mm (24 in); Track Shoe Width - Option: 711 mm (28 in)
  • Dimensions: Transport Height: 4030 mm (13 ft 3 in); Overall Width: 3330 mm (10 ft 11 in); Overall Track Length: 4900 mm (16 ft 1 in); Track Length On Ground: 3810 mm (12 ft 6 in); Tailswing Radius: 3180 mm (10 ft 5 in); Ground Clearance: 770 mm (2 ft 6 in); Width Over Tracks: 3330 mm (10 ft 11 in); Track Gauge: 2720 mm (8 ft 11 in); Horizontal Reach: 11 m (36 ft 1 in)
  • Capacities: Fuel Tank: 1080 L (285 US gal)
  • Performance: Ground Bearing Pressure: 75.5 kPa (11 psi); Slew Torque: 110.17 kNm (81,257 lbf·ft); Travel Speed: 4.2 kph (2.6 mph); Lift capacity at max reach: 4360 kg (9,610 lbs); Pump Type: Variable Axial Piston; Pump Flow: 532 L/min (141 US gal/min)
  • Weights: Operating Weight: 39,360 kg (86,790 lbs)
