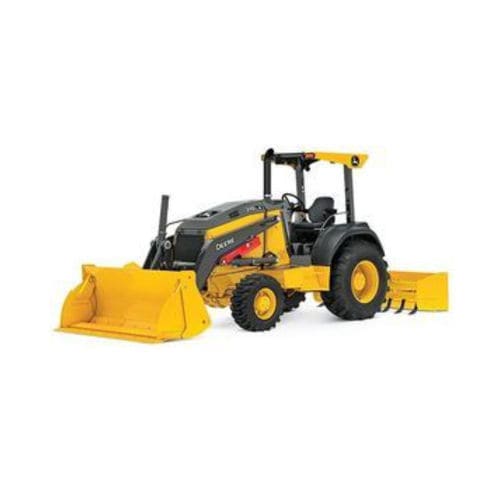

Power-shift tractor 210 G-Tier

4-cylinderwith front-loader

Product Overview
The 210 G-Tier Tractor Loader pairs a proven Yanmar 3.3L engine with a PowerShift™ transmission and Mechanical Front Wheel Drive (MFWD). Designed for reliable performance in wet and muddy conditions and available with grade-control options for improved grading accuracy.

Key details

• Net Peak Power: 52 kW (69 hp) at 2,100 rpm
• Operating Weight: 5334 kg (11,760 lb)
• Breakout Force: 42.3 kN (9,521 lb)
• Lift Capacity: 2876 kg (6,340 lb)

Features
Yanmar 3.3L engine

• Yanmar 3.3 L (201 cu in.) engine (model 4TNV98CT)
• 51 kW (69 net peak hp) compliant with EPA FT4 emissions
• No external emissions aftertreatment components
• Minimal complexity and fewer parts to maintain
• Variable-rate, temperature-controlled (viscous) cooling fan for improved efficiency and available horsepower when needed

PowerShift™ transmission

• PowerShift™ transmission, manually shifted via Transmission Control Lever (TCL)
• 4 forward and 2 reverse gears
• Heavy-duty transmission oil filter standard
• Smooth shifting and easy-to-reach TCL with one-hand operation for repetitive tasks

Mechanical Front Wheel Drive (MFWD)

• Standard MFWD with open differential; main MFWD on/off control on front console
• Completely sealed axle with no breathers to minimize water/dirt intrusion
• MFWD automatically disables in 4th gear to reduce tire wear
• Momentary MFWD for brief on-the-fly activation controlled from the loader lever (if equipped)
• Optional MFWD with limited-slip differential available

Grade Technology (optional)

• Factory-available Grade Control Ready package supports 2D or 3D grade systems for box blade lift and tilt control
• Accepts major grade-control providers; supports dual-mast or single-mast plus slope sensor setups
• No hydraulic hose disconnections or bracket welding required for reduced dealer setup
• Optional factory-installed grade indicate provides on-board roll and pitch readout within existing display (indicate-only)

Additional product attributes

• Pump type: Piston
• Pump flow: 95 L/min (24.5 gpm)
• System pressure: 220.63 bar (3200 PSI)
• Alternator capacity: 130 Amp

DRIVELINE (table form)
Engine manufacturer: Yanmar
Engine model: 4TNV98CT
Displacement: 3.3 L (203 in³)
Rated speed: 2100 rpm
Net output: 52 kW (69 hp)
Transmission type: Powershift
Number of speeds - forward: 4
Number of speeds - reverse: 2
Front axle type: Mechanical FWD
Service type: Wet disc
Service actuation: Spring Applied / Hydraulic Release

DIMENSIONS (table form)
Overall length: 5310 mm (17 ft 5 in)
Minimum transport height: 2620 mm (8 ft 7 in)
Overall width: 2200 mm (7 ft 3 in)
Std shovel width: 2184 mm (86 in)
Dump Clearance @ 45°: 2660 mm (8 ft 11 in)
Dump Reach: 765 mm (30.1 in)
Bucket Hinge Pin - Max Height: 3360 mm (11 ft)
Coupler: Quickhitch

PERFORMANCE & CAPACITIES (table form)
Max. Forward Speed: 36.2 kph (22.5 mph)
Max. Reverse Speed: 12.2 kph (7.6 mph)
Lift Capacity to Full Height: 2876 kg (6340 lb)
Oscillation angle: ±22°
Power Take Off: Optional
Shovel cap SAE heaped: 0.86 m³ (1.12 yd³)
Fuel tank capacity: 117.3 L (31 US gal)
Hydraulic tank capacity: 42.7 L (11.3 US gal)

Caractéristiques / Spécifications techniques

• Engine manufacturer: Yanmar
• Engine model: 4TNV98CT
• Displacement: 3.3 L (203 in³)
• Rated speed: 2100 rpm
• Net output: 52 kW (69 hp)
• Transmission type: Powershift (PowerShift™)
• Forward / Reverse speeds: 4 / 2
• Front axle: Mechanical FWD (standard); optional limited-slip MFWD available
• Operating weight: 5334 kg (11,760 lb)
• Lift capacity: 2876 kg (6,340 lb)
• Breakout force (std shovel): 42.3 kN (9521 lbf)
• Max forward speed: 36.2 kph (22.5 mph)
• Fuel tank capacity: 117.3 L (31 US gal)
• Hydraulic tank capacity: 42.7 L (11.3 US gal)
• Shovel capacity SAE heaped: 0.86 m³ (1.12 yd³)
• Alternator capacity: 130 Amp
• Pump flow: 95 L/min (24.5 gpm)
• System pressure: 220.63 bar (3200 PSI)
• Std shovel width: 2184 mm (86 in)
• Overall length: 5310 mm (17 ft 5 in)
• Overall width: 2200 mm (7 ft 3 in)
• Bucket hinge pin max height: 3360 mm (11 ft)
