Crawler loader 317 P-Tier

compactwith cabvertical

Overview

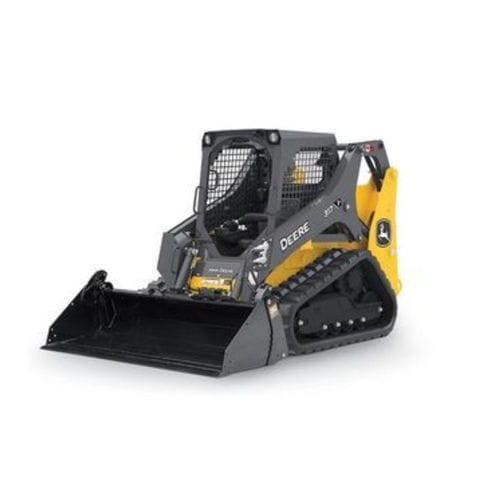

The 317 P-Tier is a John Deere compact track loader engineered for construction, landscaping and grounds-care tasks. It uses vertical lift geometry and a broad attachment ecosystem to expand capability across many jobsite applications.

Key details

• Gross power: 48.5 kW (65 hp)
• Net power: 45.6 kW (61 hp)
• Rated operating capacity: 965 kg (2,125 lb)
• Operating weight: 3,824 kg (8,423 lb)

Attachments & Versatility
John Deere provides a wide selection of attachments to adapt the machine to earthmoving, grading, lifting and specialized tasks.

• Quik-Tatch™ (optional electrically actuated) enables some attachment connections from inside the cab, reducing the need to exit the machine.
• Attachment integration is designed to deliver efficient operator use and reliable performance across implements.

Cab and comfort
The cab is arranged for extended operation with features that reduce operator fatigue.

• 25% more cab volume vs. E-Series; includes a lap bar.
• Sealed and pressurized cab to lower noise and limit dust ingress.
• Optional air-ride heated seat and optional Bluetooth radio available.
• Optional ISO-H switchable controls with the Electrohydraulic (EH) Joystick Performance Package.

Controls and operator productivity
Electrohydraulic controls provide fine adjustments and reduced effort.

• EH controls reduce fatigue compared with mechanical linkages and allow fingertip adjustments.
• EH tracking is adjustable electronically from the monitor and tunable while operating.
• Anti-stall engine software minimizes unintended stalls under heavy load.
• True Auto-Idle reduces engine speed after 5 seconds of inactivity to save fuel and reduce wear.
• EH configurations can offer differential steering for improved turning speed and maneuverability.

Maneuverability
Small-frame design and track options support work in confined areas.

• Multiple track options enable the machine to pass through narrow openings.
• Sub-1600 mm widths for comparable P-Tier models assist access to tight jobsite areas.
• Clear sightlines to cutting edges and bucket corners for precise work in close quarters.

Mobility & transport
Features simplify transport and movement on site.

• Integrated front and rear tie-downs for secure transport.
• Operating weights allow lightweight trailer transport behind a standard pickup for some configurations.
• Two-speed powertrain option (select models) provides higher travel speeds across job sites.

Serviceability
Service points and design reduce downtime and simplify maintenance tasks.

• Swing-out rear door for access to daily service points and the cooling system.
• Tilting hood for ground-level access to dipstick, fuel and fluid fillers, filters and see-through reservoirs.
• Operator station can be swung up for drivetrain access by one person in under two minutes.
• Quik-Tatch™ system positioned for convenient access to grease zerks.
• JDLink™ telematics provides machine data and health alerts to support preventive maintenance.

Visibility
Design elements improve jobsite awareness and precision.

• Optional deluxe LED lighting package with side lighting for low-light operation.
• Low-sloped rear hood, optional rearview camera and high cross-tube on the upper linkage improve rear visibility.
• Removable glass windows from inside the cab simplify cleaning to maintain sightlines.

Offers & Discounts (as shown on page)
0% APR x 48 months OR cash discount (offer details vary; see dealer for eligibility).

Specifications

• Model name: 317 P-Tier
• Brand: John Deere
• Lift geometry: Vertical
• Engine manufacturer: Yanmar
• Engine model: 4TNV86CHT
• Aspiration: Turbo
• Displacement: 2.1 L (128 in³)
• Rated speed: 2600 rpm
• Engine output (net): 45.6 kW (61 hp)
• Engine output (gross): 48.5 kW (65 hp)
• Torque: 207 Nm (153 lbf·ft)
• Track shoe width: 320 mm (12.6 in)
• Length (no bucket): 2,630 mm (103 in)
• Length (with bucket): 3,240 mm (127.6 in)
• Width (no bucket): 1,650 mm (65.1 in)
• Height - top of cab: 1,980 mm (78 in)
• Ground clearance: 190 mm (7.4 in)
• Rear departure angle: 32.3°
• Height to hinge pin: 3,070 mm (121 in)
• Dump angle: 42°
• Dump height - maximum: 2,430 mm (95.6 in)
• Rollback - ground level: 30°
• Fuel tank: 71 L (19 US gal)
• Tipping load: 2,756 kg (6,070 lb)
• Ground bearing pressure: 38 kPa (5.5 psi)
• Speed - maximum: 11.3 kph (7 mph)
• Breakout - lift: 23 kN (5,250 lbf)
• Breakout - bucket: 27 kN (6,000 lbf)
• Hydraulic power: 25 kW (33 hp)
• Pump flow: 63 L/min (17 US gal/min)
• System pressure: 237.87 bar (3,450 psi)
• Operating weight: 3,824 kg (8,423 lb)
