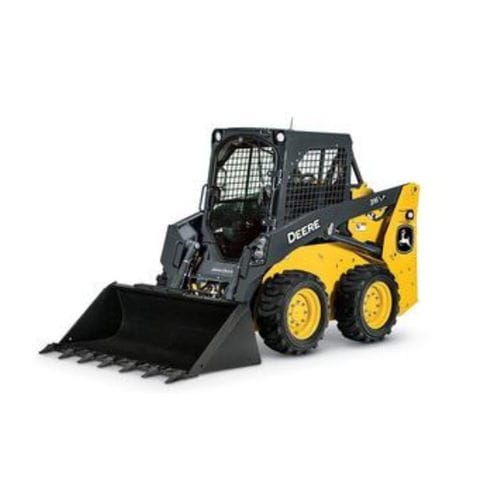

Rubber-tired loader 316 P-Tier

compactwith cabradial

Product overview
The 316 P-Tier from John Deere is a small-frame skid steer loader designed for compact-site performance and wide attachment compatibility. It combines a radial-lift geometry with a 48.5 kW (65 hp) turbocharged Yanmar engine to deliver stable breakout force and precise control in confined spaces.

Key features

• Support for over 100 attachments to expand machine capability
• Optional Quik-Tatch™ electrically actuated system for reduced cab exits during attachment changes
• Creep control available with Joystick Performance Package for precise low-speed operations
• Two-pin attachment interface on radial-lift units to limit lateral play
• Multiple tire and track options for narrow-width configurations

Cab & comfort

• Approximately 25% more cab volume vs previous E-Series (including lap bar)
• Sealed and pressurized cab to reduce noise and dust ingress
• Optional air-ride heated seat and Bluetooth radio for operator comfort
• Available ISO-H switchable controls and electrohydraulic (EH) joystick package

Controls & operator productivity

• Electrohydraulic controls reduce operator effort compared to mechanical linkages
• EH tracking adjustable from the monitor and tunable during operation
• Customizable joysticks for fingertip control and low operator fatigue
• Anti-stall engine software and True Auto-Idle to help reduce fuel use and downtime
• EH models feature differential steering for improved turning and maneuverability

Maneuverability & transport

• Small-frame layout for high performance in tight access areas
• Width below 1,600.2 mm (63 in.) for narrow-access tasks
• Integrated front and rear tie-downs for secure transport
• Operating weight compatible with lightweight trailer transport behind standard pickups
• Optional two-speed powertrain (up to 16.3 km/h / 10.1 mph)

Serviceability

• Swing-out rear door and tilting hood for easy access to daily service points
• Operator station can be swung up for drivetrain access; single-person service operations
• Quik-Tatch™ optimized for reachable grease zerks
• JDLink™ telematics provides machine data and health alerts

Visibility

• Clear sightlines to cutting edge and bucket corners for precise work
• Optional deluxe LED lighting and side-lighting for low-light operations
• Optional rearview camera and low-sloped rear hood for improved rear visibility
• Removable glass windows accessible from inside the cab for cleaning

Driveline
Engine manufacturer: Yanmar
Engine model: 4TNV86CHT
Aspiration: Turbocharged
Displacement: 2.1 L (128 in³)
Rated speed: 2,600 rpm
SAE net power: 45.6 kW (61 hp)
SAE gross power: 48.5 kW (65 hp)
Max gross torque: 207 Nm (153 lbf·ft)
Standard tire: 10 x 16.5

Dimensions
Length (no bucket): 2,630 mm (103 in)
Length (with bucket): 3,240 mm (127.6 in)
Width (no bucket): 1,600 mm (62.9 in)
Overall height: 1,960 mm (77.2 in)
Ground clearance: 180 mm (7 in)
Wheelbase: 1,050 mm (41.5 in)
Rear departure angle: 22.3°
Height to hinge pin: 2,920 mm (115.1 in)
Dump angle: 45°
Max dump height: 2,250 mm (88.6 in)
Reach at max dump height: 400 mm (15.8 in)
Rollback (ground level): 30°

Capacities
Fuel tank: 71 L (19 US gal)

Performance
Tipping load: 1,589 kg (3,500 lb)
Maximum speed: 11.1 kph (6.9 mph)
Breakout force (lift): 21 kN (4,750 lbf)
Breakout force (bucket): 23 kN (5,250 lbf)
Hydraulic power: 25 kW (33 hp)
Pump output: 63 L/min (17 US gal/min)
System pressure: 238 bar (3,450 psi)

Weights
Operating weight: 2,806 kg (6,180 lb)

Technical specifications

• Model: 316 P-Tier
• Category: Skid steer loader
• Gross power: 48.5 kW (65 hp)
• Net power: 45.6 kW (61 hp)
• Rated operating capacity: 795 kg (1,750 lb)
• Operating weight: 2,806 kg (6,180 lb)
• Engine: Yanmar 4TNV86CHT, turbocharged, 2.1 L
• Standard tire: 10 x 16.5
• Lift geometry: Radial
• Fuel tank: 71 L (19 US gal)
• Max speed: 11.1 kph (6.9 mph)
• Tipping load: 1,589 kg (3,500 lb)
• Hydraulic pump output: 63 L/min
• Hydraulic power: 25 kW
• System pressure: 238 bar
