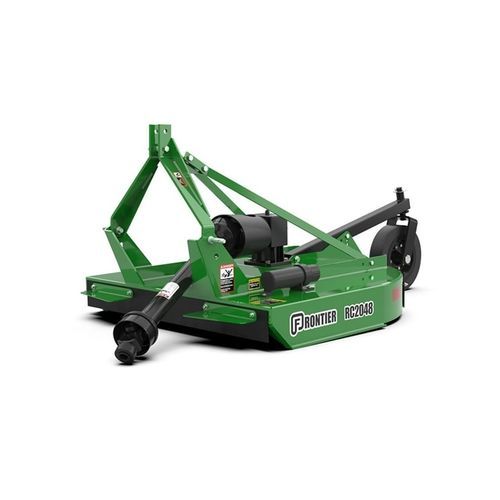

Agricultural rotary cutter RC20 Series

rear-mountPTO-drivenchain

Overview
The RC20 Series rotary cutters are single-deck, round-back units designed for maneuvering in tight areas and for heavy mowing and brush cutting. They provide driveline protection options (slip clutch or shear bolt), compatibility with quick-attach systems, and multiple cutting widths to match various tractors and tasks.

Key details

• Driveline protection: slip-clutch or shear bolt
• 2 in. (5.08 cm) diameter cut capacity
• Quick Hitch and Quik-Knect™ compatibility for fast attachment
• Available widths: 48, 60, 72, 84 in. (121.9, 152.4, 182.9, 213.4 cm)

Features

• Round-back deck design for easier turning and clearance around obstacles
• Front deflectors (rubber or chain) and rear deflectors (metal or chain) to allow unrestricted exit of water and debris
• Adjustable cutting height via tractor three-point linkage and support bar: 1.5 in (3.8 cm) to 9 in (22.9 cm)
• Statically balanced blade pan (one standard pan for all sizes) and thicker blade bar to reduce vibration and increase durability
• Reversible low hitch point to accommodate a range of tractor hookups
• Z-profile lower lip from skid shoes to apron opening for increased strength
• Puncture-resistant rear wheel options: laminated or solid rubber; laminated wheels for longer life in sandy/light soils
• iMatch™ hitch system compatibility for fast connection (iMatch hitch sold separately)

Specifications (table-style)
Dimensions:
Overall width: 129 cm / 51 in.
Overall length: 220 cm / 87 in.

Weight:
Operating weight: 232 kg / 512 lb

Tractor compatibility:
PTO power: 13–33 kW / 18–45 hp
Tractor PTO: 540 rpm
PTO category: ASAE 3

Gear case:
Power rating: 34 kW / 45 hp

Driveline:
Type: Shear bolt or slip clutch

Hitch:
Type: Lift-type
Category: Cat. 1, adaptable to Cat. 2
iMatch compatible: Yes
AutoHitch compatible: Yes

Deck:
Thickness: 11 gauge / 3 mm
Shape: Flat-open round back
Type: Single deck

Skirt:
Thickness: 11 gauge / 3 mm

Capacity:
Cutting width: 122 cm / 48 in.
Cutting height: 4–23 cm / 1.5–9 in.
Cutting diameter: 0–2.5 cm / 0–1 in.
Cutting chamber depth: 19 cm / 7.5 in.

Blades:
Tip speed: 66.5 m/s / 13,090 fpm
Type: Heat treated, suction
Thickness: 13 mm / 0.5 in
Width: 76 mm / 3 in

Blade holder:
Type: Round pan-type
Diameter: 567 mm / 22.3 in.

Wheels:
Quantity: 1
Type: Solid rubber or laminated
Diameter (laminated/rubber): 381 mm / 15 in.
Width (laminated/rubber): 95 mm / 3.75 in.

Safety:
Safety markings: Standard
Front deflector: Standard
Rear deflector: Standard

Set-up time:
Labor hours: 1

Warranty:
Time period: 1 year (general); Gearbox: 1 year

Technical specifications

• Model: RC20 Series
• Product type: Rotary Cutters
• Available cutting widths: 48, 60, 72, 84 in. (122, 152.4, 182.9, 213.4 cm)
• Cutting height range: 3.8–22.9 cm (1.5–9 in)
• Operating weight (example): 232 kg / 512 lb
• Overall width (example): 129 cm / 51 in
• PTO power range: 13–33 kW / 18–45 hp
• Tractor PTO speed: 540 rpm
• Deck thickness: 11 gauge / 3 mm
• Blade type: Heat treated, suction; blade thickness 13 mm
• Driveline protection: Shear bolt or slip clutch
• Hitch category: Cat. 1 (adaptable to Cat. 2); iMatch and AutoHitch compatible
• Tire options: laminated or solid rubber puncture-resistant rear tire
• Warranty: 1 year (product and gearbox)
