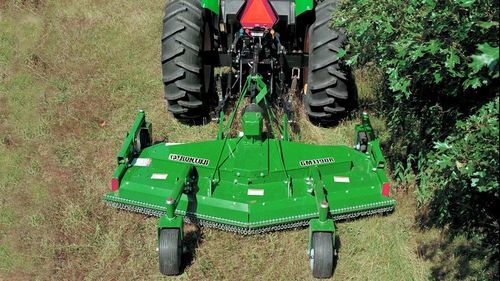

Mounted mower GM series
rotaryfor tractorswith roller conditioner

Mounted mower - GM series - John Deere Forestry - rotary / for tractors / with roller conditioner
Mounted mower - GM series - John Deere Forestry - rotary / for tractors / with roller conditioner
Add to favorites
Compare this product

Characteristics

Mounting
mounted
Technology
rotary
Other characteristic
for tractors, with roller conditioner
Working width

Max.: 1.83 m
(6'00" )

Min.: 1.52 m
(4'11" )

Power required

Max.: 56 kW
(76.1 hp)

Min.: 11 kW
(15 hp)

PTO speed

540 rpm
(3,392.9 rad.min-1)

Weight

Max.: 605 kg
(1,333.8 lb)

Min.: 182 kg
(401.2 lb)

Description

Overview
  • 7‑gauge, 4.55‑mm (0.179‑in.) steel deck
  • Quick‑change, free‑swinging blades
  • iMatch™ quick‑hitch compatible with conversion kit
  • Replaceable skid shoes


Key Features
  • Caster wheels prevent scalping: Four caster wheels follow ground contours and prevent scalping. Heavy tubular caster wheel arms are bolted to rail supports for long life.
  • Deck design increases productivity: Rounded, front‑tapered rear deck design allows for close mowing along trees, fences, buildings, and other obstacles.
  • Rugged gearbox with cooling fins: GM11 Series grooming mowers come with a 37.3‑kW (50‑hp) rugged gearbox; cooling fins help extend gearbox life.
  • Anti‑scalping roller conversion kit (optional): Anti‑scalping roller attaches to the front of the cutting deck to help reduce scalping. Each kit contains one roller.
  • Rear chain shield conversion kit (optional): Rear chain shield assists in preventing debris from flying out from underneath the deck on rear‑discharge models.


Additional information
  • Designed as medium‑duty grooming mowers for close, efficient mowing
  • Compatible with field conversion kits and optional attachments to reduce scalping and control debris


Technical specifications
  • Deck material/thickness: 7‑gauge steel, 4.55 mm (0.179 in.)
  • Blades: Quick‑change, free‑swinging
  • Gearbox rating: 37.3 kW (50 hp) (rugged gearbox with cooling fins)
  • Hitch compatibility: iMatch™ quick‑hitch compatible with conversion kit
  • Optional attachments: Anti‑scalping roller kit (1 roller per kit), rear chain shield conversion kit
  • Replaceable components: Skid shoes replaceable for deck protection
