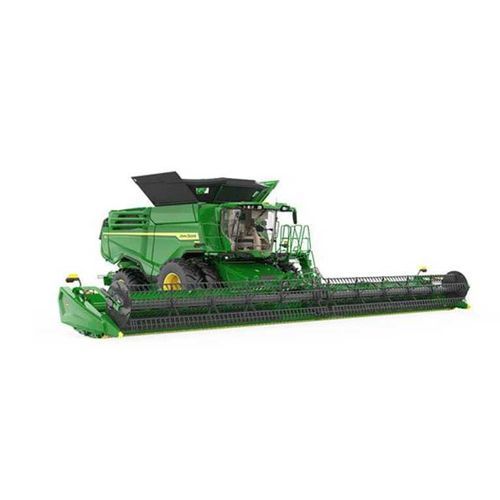

Drum threshing combine harvester X9 1000

rice

Overview
The X9 1000 Combine is a high-capacity grain harvesting machine optimized for extreme wear conditions, specifically configured for rice harvesting with coated and wear-resistant components to extend service life and reduce downtime. Integrated systems include the G5 Plus CommandCenter display and StarFire receiver with available SF-RTK. Large cleaning and separation areas improve grain quality and throughput.

Key features and highlights

• Maximum engine power: 630 hp
• Peak unload rate: 4.6 bu/s (162.1 L/s)
• Grain tank capacity: 420 bu (14,800 L) power folding tank
• Integrated G5 Plus CommandCenter display and StarFire receiver with available SF-RTK
• John Deere PowerTech PWS 13.6 L engine family
• ProDrive XL transmission with updated driveline for improved fuel economy

Rice package overview and benefits
The X9 rice package is engineered for extreme wear conditions using coated and hard-faced components to extend wear life, reduce ownership cost, and lower potential downtime.

Rice package additional details

• Coated rotor tines and coated elevator components
• Wear-resistant materials with hard facing on high-wear parts
• Only available in X9 1000; specific order codes required for extreme-wear configuration
• Feederhouse: stainless steel floor, deflector shield for solenoid protection, protective sheathings on exposed hydraulic hoses
• Feed accelerator: coated chevron nose, stainless steel feed ramp plate, coated hardware
• Dual separator: hard-faced rotor feed flights, stainless steel rail liners, special wear-resistant Z-bars, coated rotor tines, stainless steel top covers
• Grain handling: wear-resistant tailings auger, hard-faced flighting on clean grain auger, coated elevator boat and top cap, reinforced gears on loading auger gearbox, wear-resistant grain tank cross augers
• Residue management: stainless steel floors, wear-resistant chopper knives and bushings

Performance and operational benefits

• Up to 20% better fuel efficiency per bushel versus previous designs due to engine, belt drive, and ProDrive XL transmission improvements
• 36% larger Dyna-Flo XL cleaning shoe for increased cleaning area on high-yield or high-foreign-matter crops
• Uniform residue spread up to 15.2 m (50 ft) with cab-adjustable sizing and spreading
• Automated Combine Advisor package adjusts harvesting settings as conditions change to reduce grain loss and improve quality
• Faster crop changeover with improved rotor/fast rpm shift, lighter concaves, and no-tools-required grain tank cleanout

Performance comparison and capacity (selected)
Harvesting capacity (percent above an S790): Tough wheat | S790: 100% | X9 1000: 134% | X9 1100: 170%
Canola | S790: 100% | X9 1000: 135% | X9 1100: 140%
High-moisture corn | S790: 100% | X9 1000: 130% | X9 1100: 150%
Soybeans | S790: 100% | X9 1000: 130% | X9 1100: 145%

PAMI benchmarking example (summary)
Total throughput (tonnes/hr) | X9 1100: 115 | CLAAS 8800: 90 | Advantage: 25 t/hr
Combine capacity (bu/hr) | X9 1100: 2,306 | CLAAS 8800: 1,801 | Advantage: 505 bu/hr
Productivity (acres/hr) | X9 1100: 18 | CLAAS 8800: 14 | Advantage: 4 acres/hr
Machine depreciation (USD/acre) | X9 1100: $19.75 | CLAAS 8800: $25.28 | Savings: $5.53/acre

Notes on testing and assumptions
Benchmark figures derive from independent PAMI testing under specific conditions. Examples use defined currency, acreage, yield, diesel price, and depreciation assumptions. Actual results vary with local conditions, yields, machine count, and operational practices.

Specifications

• Engine type: John Deere PowerTech PWS 13.6 L (830 cu in.)
• Rated power: 410 kW / 549 hp
• Maximum power: 470 kW / 630 hp
• Power boost @ rated speed: 39.5 kW / 53 hp
• Fuel capacity: 1249.2 L / 330 gal
• Emission level: Final Tier 4 (FT4)
• Rotor length: 3.51 m / 11.5 ft
• Rotor diameter: 60.1 cm / 24 in
• Concave area: 1.6 m2 / 17.22 sq ft
• Separating area: 3.6 m2 / 38.75 sq ft
• Total cleaning area (louvered): 6.97 m2 / 75.02 sq ft
• Grain tank size: 14,800 L / 420 bu
• Peak unloading rate: 162 L/s / 4.6 bu/sec
• Unloading auger lengths available: 7.9, 8.7, or 9.45 m (26, 28.5, or 31 ft)
• Cleaning fan speed range: 570 to 1430 rpm
• Feederhouse width: 1720 mm / 67.7 in
• Feed Accelerator (FAST): modulated feederhouse reverser with eight-wing chevron FAST
• Separator type: Dual rotor
• Manufacturing location: United States
• Product information reference date: 15 June 2020
