Mid-mount mower 54D

rotaryPTO-drivenfor tractors

Overview

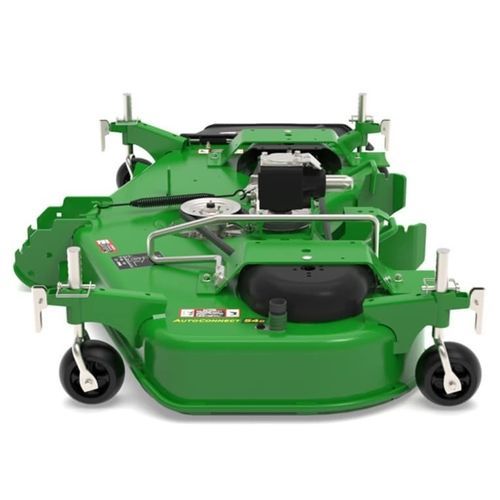

The 54D is a mid‑mount mower deck with AutoConnect™ drive‑over installation and a shaft‑driven mid‑PTO connection. Designed for agricultural use on compact tractors, it lets operators mow while keeping rear 3‑point hitch implements (backhoes, loaders) attached. Height‑of‑cut (HOC) is adjusted from the tractor using a knob for fast changes.

Key features

• Drive‑over AutoConnect™ installation for quick, tool‑free mounting.
• Compatible with rear 3‑point hitch implements so rear attachments remain in place while mowing.
• Shaft‑driven mid‑PTO (no belts) for straightforward connection and reliable power transfer.
• Height‑of‑cut adjustable from tractor via an HOC knob (1 to 4 in / 2.54 to 10.16 cm).
• Heavy‑duty double‑side locking latches for secure mounting.
• Service‑friendly design: removable drive‑over ramps, greaseable blade spindles and mower drive shaft.

Installation and removal

• General notes: Four‑wheel drive and low gear required. Perform installation/removal on a firm, level surface. Set HOC to install position before mounting or dismounting.
• Installation (summary):
  • Set HOC to install position.
  • Raise gauge wheel handles to release locks.
  • Lower mower lift arm with rockshaft control and slowly drive forward onto deck using guide bar for alignment.
  • Continue until rear latches engage.
• With AutoConnect PTO: raise deck, set HOC to mowing height, and lock gauge wheels with quick‑release pins.
• With manual PTO: stop tractor, manually connect PTO shaft under tractor, then raise deck and set HOC to mowing height and lock gauge wheels.
• Removal (summary):
  • Park on level ground, release gauge wheel pins and set HOC to install position, lower mower to ground.
  • With AutoConnect PTO: flip locking levers forward and back up over deck following guide‑bar procedure.
  • With manual PTO: stop tractor and disconnect PTO shaft; store shaft in holding bracket; flip locking levers forward and back up over deck.

Mid‑mower lift system
The forward lift link on the deck is spring‑loaded for automatic connection to tractor front hangers. The PTO drive‑shaft auto‑adjusts as the female end engages the gearbox coupler; tapered guides on the male coupler aid engagement. Available lift options:

• Standard mechanical mower lift — operates with the rear implement via rockshaft lever control.
• Optional hydraulic mower lift — independent raise/lower of mower using dual SCV (loader joystick).
• Optional independent hydraulic mower lift — independent control using a third‑function SCV (requires third SCV on tractor).

Compatibility

• Compatible tractor models: 1023E, 1025R, 1026R.
• 1 Series and 2025R tractors include dual mid‑SCV as standard; mid‑mower hydraulic lift can use dual SCV or optional third SCV for lift control.

Technical specifications

• Model: 54D
• Cutting width: 137 cm / 54 in.
• Overall width: Deflector up: 152 cm / 60 in.; Deflector down: 174 cm / 68.5 in.
• Cutting height (HOC): 2.54 to 10.16 cm (1 to 4 in) — adjustable from tractor HOC knob.
• Number of blades: Three
• Blade length: 48.5 cm / 19.1 in.
• Blade thickness: 0.63 cm / 0.25 in.
• Blade tip speed (at 2,600 rpm): 5,106 m/min (16,751 fpm)
• Deck thickness: 10 gauge / 3.416 mm / 0.1345 in.
• Approximate weight: 89 kg / 197 lb
• Gauge wheel size (front): 12.7 cm / 5 in.
• Gauge wheel size (rear): 12.7 cm / 5 in.
• Drive: Tractor mid‑PTO shaft (shaft drive, no belts); rear PTO remains free for rear‑mounted implements.
• Service/durability features: removable drive‑over ramps, greaseable blade spindles and mower drive shaft, reinforced front lip and trimmed deck sides, plastic chute guard.
