Flail mulcher FL10 series

mountedroadsidegrass

Overview

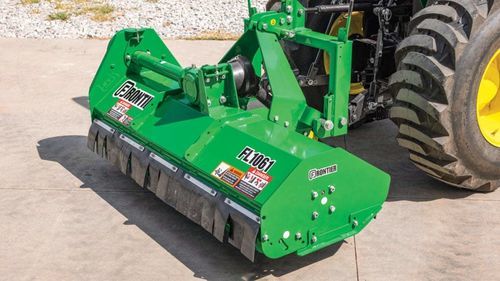

The Frontier™ FL10 Series flail mower is engineered for demanding vegetation management, combining aggressive brush cutting with the ability to leave turf with a finished appearance. Suited for waterways, fields, ditches, banks, hedgerows and pond/turf maintenance, it reduces implement changes by delivering multiple capabilities from one unit.

Key features

• Fixed centered 3‑point hitch
• Handles both brush and turf grass
• Hammer blades reduce material size
• Produces a finished turf look

Durability & Versatility
The FL10 Series is built to cut heavy brush while still providing a clean finish on maintained turf. Its configuration lets operators perform grooming and rough‑cut tasks with a single implement, minimizing repeated tractor exposure to tough material after initial passes.

Hammer Blades for a Range of Conditions
Standard models include hammer blades for aggressive cutting in heavy conditions while maintaining quality on mowed fields. Y‑blades are available as a service kit for shredding applications.

Roller with Adjustable Cutting Heights
The rear roller adjusts to three cutting height positions (low, medium, high) to prevent blade digging into soil as conditions vary and to improve stability on rough terrain.

Skid Shoes
Adjustable skid shoes prevent blades from digging into uneven ground. Correct adjustment of both skid shoes and roller helps avoid scalping and soil tilling for optimal cutting performance.

External Heavy‑Duty Gearbox
The FL10 features an external heavy‑duty gearbox that is serviceable and replaceable. The gearbox includes a one‑year warranty.

Parking Stand
The parking stand adjusts down so the flail mower can be easily lowered to the ground for removal and transport.

Technical specifications

• Capacity, Cutting (in.): 0.75 in.
• Height, Cutting (in.): 0.78 / 1.57 / 2.36 in.
• Height, Overall (in.): 31.2 in.
• Length, Overall (in.): 32 in.
• Width, Cutting (in.): 61 in.
• Width, Overall (in.): 68.16 in.
• Weight (lbs.): 505 lb
• Tractor HP Required (min. - max.): 25 - 45 hp
• Tractor Weight MINIMUM (lbs.): 1550 lb
• COG (in): 15 in.
• Hitch Type: 3-point
• iMatch Compatible: No
• Hitch Category: 1
• Hitch Position: Fixed Centered
• Offset Range: No
• Hydraulic Offset: No
• Blade Type: Hammers (std); Y-Blade (service)
• Number of Hammers: 32
• Type of Blades / Hammers: 19 / 21
• Blade Tip Speed (ft/min): 8622 ft
• Rotor Diameter (in.): 5 in.
• Rotor Speed (rpm): 2600 rpm
• Rotor Thickness (mm.): 8 mm
• Rotor Work Diameter (in.): 12.63 in.
• Rotor Bearing Type: SPHERICAL ROLLER 22207
• Gear Box Speed (rpm): 540 rpm
• Drive Belts: 2 - SPB Lp=1160
• Gauge Roller Diameter (in.): 5.5 in.
• Hydraulic Quick Coupler Size (in.): 1/2 in.
• Frame Thickness (mm.): 3 mm
• Side Frame Thickness (mm.): 4 mm
• Roller Bearing Diameter (in): 2.4 in.
• Rear Roller Bearing Type: D30 D62 B20 2206E 2RS1
• Belt adjustment: Screw adjustment
• Primary Pulley Diameter (mm.): 225 mm
• Secondary Pulley Diameter (mm.): 140 mm
• Hood Height (in.): 15.35 in.
• Side Case Height (in.): 25.2 in.
• PTO Yoke Height (in.): 18.66 in.
