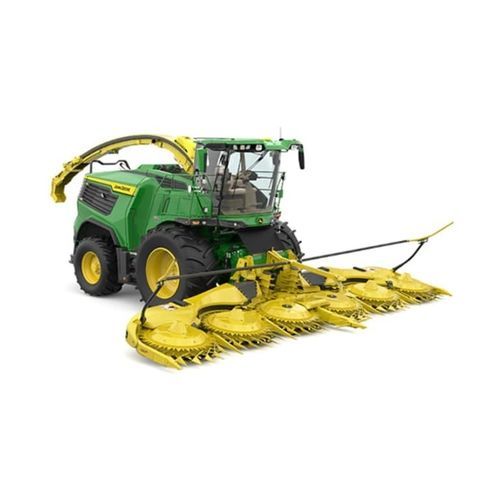

Self-propelled forage harvester F9 1000

precision

Summary

• All‑new design with a larger, more ergonomic cab and Hydro Handle CommandARM™ for improved operator control.
• Longitudinal 24.2 L Liebherr V12 engine using HARVESTMOTION™ low‑rpm concept and ProDrive™ driveline architecture.
• Kernel processor options: John Deere Ultimate 250 KP or XStream 305 KP to adjust crushing intensity and forage quality.
• Integrated G5 display, StarFire™ 7500 receiver and JDLink™ modem for guidance, automation and telematics.

Power and Engine Technology
F9 1000 delivers very high continuous power via a Liebherr 24.2 L V12 using HARVESTMOTION™ to produce high torque at reduced engine speed for better fuel efficiency and smoother crop flow.

• HARVESTMOTION™: low‑RPM concept for reduced specific fuel consumption and optimized torque curve.
• HARVESTMOTION™ Plus (on some models) adds low‑rpm torque boost; F9 1000 uses the Liebherr V12 with low‑rpm HarvestMotion characteristics.
• ECO Mode: selectable preset to limit peak power and lower fuel use when full output is not required (standard on F9 600–F9 1000).

Engine table (F9 Series)
F9 1000 | Liebherr® V12 | Rated power: 750 kW (1020 PS) (1006 hp) | HARVESTMOTION™ Plus: Not available | ECO Mode power: 604 kW (821 PS) (810 hp)

Driveline and Transmission
The driveline routes engine power through a power distribution gearbox feeding the main PTO band and hydraulic pumps; harvesting components are mechanically driven from the main PTO for consistent power delivery.

• ProDrive™: hydrostatic drive with two‑speed automatic mechanical gearbox; multiple final speed configs (20–40 km/h); includes differential lock and engine‑speed management (ESM) features.
• ProDrive™ 2Shift (where offered): hydrostatic with two‑speed manual shift option.
• Rear axle options: 2WD or 4WD, heavy‑duty 11.5 t rear axle available; adjustable 4WD ratio with ProDrive™.
• CTIS or CTIS‑Ready options for on‑the‑move tire pressure adjustment to improve flotation and traction.

Harvesting Systems & Automation

• Kernel processor: John Deere Ultimate 250 KP or XStream 305 KP to influence chopping/crushing for different feed strategies.
• Active Fill Control (AFC): camera‑based spout aiming and trailer fill control to reduce losses and enable video monitoring of fill.
• ProTouch Harvest: single‑click start sequence to engage multiple harvester systems automatically (MY26 enhancement).
• Ground Speed Automation (GSA): automatically adjusts ground speed to maintain optimal engine load across variable crop density.

Precision Ag & Displays

• Integrated G5 CommandCenter™ (10 in) or optional G5Plus (12.8 in) capacitive touch displays with ISOBUS VT compatibility and data documentation.
• StarFire™ 7500 receiver support for improved positioning accuracy and guidance.
• AutoTrac™ and AutoTrac RowSense™ available for automated guidance and row tracking (header sensors and activations required).
• HarvestLab 3000 sensor on the discharge spout measures dry matter and constituents (sugar, starch, ADF, NDF, protein, fat, ash) to enable AutoLoc length‑of‑cut adjustments and documentation to Operations Center via JDLink™.

Cooling, Serviceability & Endurance

• Longitudinal engine layout for improved rear access, balanced weight distribution and optimized airflow for cooling.
• Mechanically driven engine fan and suction blower with integrated cleaning nozzle for blower assembly.
• Fuel tank: standard 1500 L (396 gal) with improved sump design for extended side‑slope operation.
• Designed for long maintenance intervals on the Liebherr V12 (example indicated ~1000 h service interval).

Connected Support
Factory‑installed JDLink™ hardware enables telematics, remote diagnostics and John Deere Connected Support features (live machine data, preventive maintenance and Remote Display Access).

Benefits / Key Points

• Very high power and torque characteristics from the Liebherr V12 with HarvestMotion for efficient, high‑throughput harvesting.
• Robust driveline and ProDrive™ transmissions for reliable ground drive and fuel‑saving operation.
• Integrated precision‑ag and sensor systems (G5 display, StarFire™ 7500, HarvestLab 3000, AutoTrac) to improve productivity and documentation.
• Operator comfort and automation (larger cab, CommandARM™, AFC, ProTouch Harvest) to reduce fatigue and increase consistency.

Technical specifications

• Brand: John Deere
• Commercial model: F9 1000
• Type: Self‑propelled forage harvester
• Main engine: Liebherr® V12 24.2 L
• Rated power: 750 kW (1020 PS) (1006 hp)
• ECO Mode power: 604 kW (821 PS) (810 hp)
• Kernel processor options: John Deere Ultimate 250 KP or XStream 305 KP
• Fuel tank capacity (standard F9): 1500 L (396 gal)
• Available transmissions: ProDrive™ (hydrostatic + 2‑speed automatic mechanical gearbox)
• Precision‑ag systems: G5 / G5Plus displays, StarFire™ 7500, HarvestLab 3000, AutoTrac, AutoTrac RowSense
• Automation systems: Active Fill Control (AFC), ProTouch Harvest, Ground Speed Automation (GSA)
• Traction systems: 2WD or 4WD, optional 11.5 t rear axle, CTIS available
• Telematics: JDLink™ modem included (4G MTG, Remote Display Access capable)
• Service: long maintenance intervals for Liebherr V12 (example ~1000 h)
