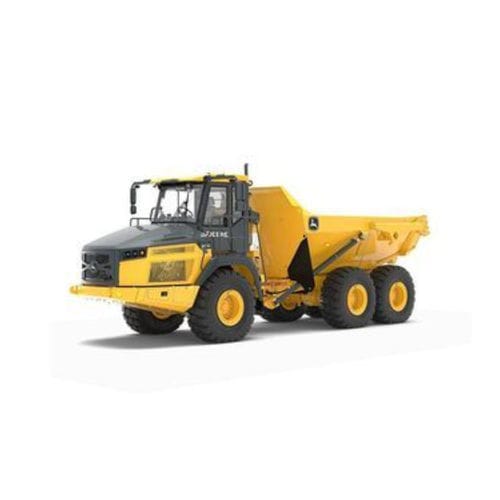

Dump truck 260 P-Tier

2-axle

Overview The 260 P‑Tier articulated dump truck (ADT) by John Deere is a heavy‑duty construction machine engineered for high payloads, efficient material movement and advanced operator ergonomics and telematics.

Key highlights

• Net power: 239 kW (321 hp) @ 1,900 rpm
• Rated payload: 24,192 kg (53,334 lb)
• Heaped capacity: 15.0 m³ (19.6 cu yd)

Auto dump and hill hold Automatic dump control and hill hold reduce repetitive operator actions and improve cycle efficiency.

• Auto dump: transmission shifts to neutral, service brakes set, engine speed increases and body raise is initiated at the push of a lever
• Hill hold: keeps service brakes applied when stopping uphill to prevent rollback during transition from brake to throttle

Cab and comfort Sealed, pressurized John Deere cab with standard adaptive suspension system for reduced noise and improved operator comfort.

• 69 dB ultra‑quiet cab
• Larger entry for easier access
• Fully adjustable air‑ride seat
• Sealed and pressurized to keep out dust and noise
• Mirror‑bow design for increased visibility and reduced vibration; walkthrough access to engine compartment
• Standard reverse camera (choice of display) for improved rear visibility
• Standard auto‑horn can sound on startup, movement or direction changes to aid MSHA compliance
• Front/rear work lights and optional high‑mounted LED lights; stairway lights are push‑button operated

Onboard diagnostics and connectivity (JDLink™) In‑base five‑year JDLink telematics subscription provides machine location, utilization data and alerts. Connectivity supports remote diagnostics, Expert Alerts and machine health monitoring to maximize uptime.

Smart features to boost productivity Smart features include on‑the‑fly auto‑differential lock, optional tire pressure/temperature monitoring, and optional onboard payload weighing to improve uptime, efficiency and lower operating costs.

• Optional factory‑calibrated onboard weighing displays payload on the monitor and transmits real‑time load/tonnage via JDLink
• Optional integrated tire pressure/temperature monitoring issues passive and audible alarms and transmits alerts via JDLink

Standard onboard operational aids Multiple operator and owner settings in the monitor simplify operation and improve safety and cycle times. Standard features include rollover protection alerts, downhill dump protection, auto dump brake, frame protection, shuttle shifting, descent control, dump body limits, transmission warm‑up and configurable speed limits.

Specs — Driveline (key items)

• Engine manufacturer: John Deere
• Engine model: PowerTech PSS 6090
• Displacement: 9 L (549 in³)
• Rated speed: 1,900 rpm
• Engine output (net): 239 kW (321 hp)
• Transmission type: Countershaft
• Final drive: Planetary
• Steering type: Articulated
• Secondary steering type: Ground driven pump
• Differential lock: F: 100 / R: 100
• Tire size (standard): 23.5 R25
• Front suspension: Nitrogen/oil‑filled struts — auto levelling
• Rear suspension: Pivoting walking beam with rubber suspension blocks
• Service brake actuation: Hydraulic
• Parking brake type: Disc
• Retarder type: Transmission

Specs — Dimensions (key items)

• Length overall: 9,740 mm
• Height max: 3,660 mm
• Width over tires: 2,850 mm
• Hoist type: Twin, 1‑stage
• Power down: Yes
• Approach angle: 24°
• Articulation angle: ±45°
• Turning radius outside/inside: 8,020 mm / 4,270 mm
• Turns lock to lock: 4.2

Specs — Capacities

• Fuel tank: 496 L (131 US gal)
• Struck capacity: 11.7 m³ (15.3 yd³)
• Heaped capacity: 15.0 m³ (19.6 yd³)

Specs — Performance & weights

• Gears (F/R): 8F - 4R
• Net weight: 22,494 kg (49,591 lb)
• Payload: 24,192 kg (53,334 lb)
• Gross weight: 46,686 kg (102,925 lb)

Additional notes Features and specifications are based on published information at the time of publication and are subject to change without notice.

Technical specifications

• Brand: John Deere
• Model: 260 P‑Tier
• Category: Articulated dump truck
• Net power: 239 kW (321 hp) @ 1,900 rpm
• Rated payload: 24,192 kg (53,334 lb)
• Heaped capacity: 15.0 m³ (19.6 yd³)
• Engine model: PowerTech PSS 6090
• Displacement: 9 L (549 in³)
• Fuel tank: 496 L (131 US gal)
• Tire size (standard): 23.5 R25
• Front suspension: Nitrogen/oil‑filled struts — auto levelling
• Rear suspension: Pivoting walking beam with rubber suspension blocks
• Transmission: Countershaft; retarder type: Transmission
• Dimensions (L×W×H): 9,740 mm × 2,850 mm × 3,660 mm
• Turning radius outside/inside: 8,020 mm / 4,270 mm
• Net weight / Gross weight: 22,494 kg / 46,686 kg
