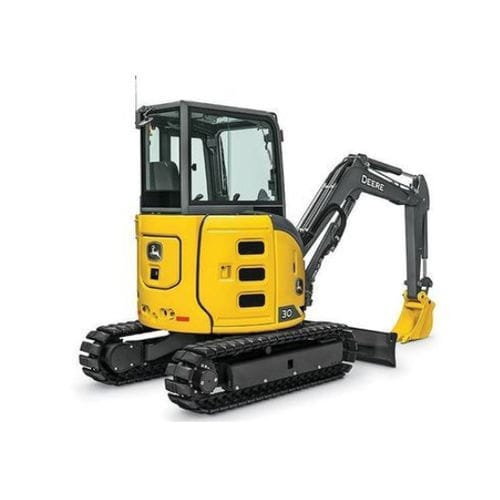

Tracked excavator 30 P-Tier

hydraulicminiwith blade

Product overview
The 30 P-Tier compact excavator is designed for efficient digging, trenching and material handling in confined or urban worksites. It provides a roomy operator station with wide entry, enhanced visibility, selectable power/economy modes for fuel management, and service features to maximize uptime.

Summary specifications

• Net power: 17.4 kW (23 hp)
• Maximum digging depth: 2.79 m (9 ft 2 in)
• Operating weight: 3,275 kg (7,220 lb)

Key features

• Quick coupler system: Quick-connect auxiliary couplers and a manual quick coupler enable fast attachment changes to minimize downtime. An auxiliary selector valve allows switching between one-way and two-way flows when using hydraulic attachments.

  • The standard selector valve permits connection of two attachments simultaneously and diverts supply/return oil between them.
  • Compatible with augers, hydraulic breakers for rock and concrete work, and thumbs (clamps) for handling bulky materials.
• Standard backfill blade: Full-width backfill blade matches the undercarriage for leveling and trench backfill. Useful for clamping and carrying pipe, rocks or bulky items. Optional bolt-on cutting edge is available.

  • Provides grading and filling capability plus added stability on uneven ground.
• Fuel savings with auto-idle and economy mode: Economy/power modes, auto-idle and auto-shutdown reduce fuel use during low-demand operation while preserving digging performance.
• Spacious cab with wide entry and visibility: Large access, broad front glazing and foldable travel pedals increase operator comfort. Standard suspension seat, optional heater, adjustable work light, pilot controls and automatic bi-level climate control are available.

  • All canopies and cabs meet TOPS, ROPS and FOPS safety requirements.
• Ground-level daily service and extended maintenance intervals: Hinged service doors give access to side-by-side oil cooler and radiator. Extended oil change and greasing intervals, oil-impregnated bushings and wet-disc swing brake reduce service time and cost.
• Easy-to-maintain undercarriage: X-frame undercarriage sheds debris; each track frame has a serviceable track adjuster. Rubber tracks are standard; steel tracks and rubber pads are optional. Multiple tie-down points are provided for transport.

Attachments

• Supports a wide range of compact-excavator attachments including augers, breakers, plate compactors, buckets and thumbs to increase machine versatility across applications.

Additional notes

• Operator comfort and ergonomics are designed to accommodate larger operators and improve productivity.
• Machine is configured for improved uptime and lower daily operating cost through enhanced serviceability and fuel-efficiency features.

Technical specifications

• DRIVELINE:
  Engine manufacturer: Yanmar
  Number of cylinders: 3
  Displacement: 1.64 L (100.2 in³)
  Rated speed: 2400 rpm
  Engine output - net: 17.4 kW (23 hp)
  Number of carrier rollers - each side: 1
  Number of track rollers - each side: 4
  Track shoe width: 300 mm (12 in)
• DIMENSIONS:
  Transport length (mono boom): 4450 mm (14 ft 7 in)
  Transport height - maximum: 2480 mm (8 ft 2 in)
  Overall undercarriage width: 1550 mm (5 ft 1 in)
  Track length on ground: 1660 mm (5 ft 5 in)
  Overall undercarriage length: 2110 mm (6 ft 11 in)
  Tailswing radius: 775 mm (2 ft 7 in)
  Ground clearance: 280 mm (11 in)
  Dozer blade height: 373 mm (15 in)
  Dozer blade width: 1740 mm (5 ft 9 in)
  Width over fixed tracks: 1550 mm (5 ft 1 in)
  Digging reach - mono boom: 4890 mm (16 ft 1 in)
  Dig height - mono boom: 4420 mm (14 ft 6 in)
  Dump height - mono boom: 3030 mm (9 ft 11 in)
  Dig depth - mono boom: 2790 mm (9 ft 2 in)
• CAPACITIES:
  Fuel tank: 42 L (11.1 US gal)
  Hydraulic tank: 43 L (11.4 US gal)
• PERFORMANCE:
  Ground bearing pressure: 30 kPa (4.4 psi)
  Swing speed: 9.1 rpm
  Travel speed - high: 4.3 km/h (2.7 mph)
  Main pump flow: 76.8 L/min (20.2 US gal/min)
• WEIGHTS:
  Operating weight: 3,275 kg (7,220 lb)
