Hay pickup head 46R
for forage harvesters

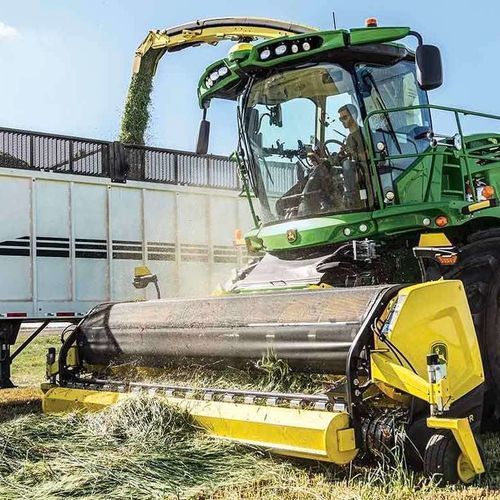

Hay pickup head - 46R - John Deere Forestry - for forage harvesters
Hay pickup head - 46R - John Deere Forestry - for forage harvesters
Add to favorites
Compare this product

Characteristics

Application
hay
Other characteristics
for forage harvesters
Pickup width

5.65 m
(18'06" )

Description

Overview
  • 5.65 m overall pickup designed for smooth crop flow with long extended auger flights.
  • Chainless drive for reduced maintenance on the driveline.
  • Compatible with F8 Series and F9 Series SPFH models.


Features
  • Large-diameter auger: 790 mm (31.1 in.) auger with 200 mm (7.9 in.) flights to level uneven windrows and ensure high throughput for large self-propelled forage harvesters.
  • Chainless drive: Eliminates chains and sprockets to reduce maintenance and repair needs, requires minimal servicing and increases operational uptime.
  • Six-tine-bar pickup reel: Six tine bars with 6.5 mm (0.26 in.) thick tines arranged in six rows of 32 tines; support elements distribute forces to extend tine life and allow lower reel speed to reduce wear.
  • Auger feed: Feed auger equipped with adjustable paddles for controlled crop feeding.


Specifications
  • Model: 46R
  • Product type: Hay pickup
  • Pickup overall width: 5.65 m (18.5 ft)
  • Transport width: 4.6 m (15.1 ft)
  • Effective operating width (tine to tine): 4.3 m (14.1 ft)
  • Auger diameter: 790 mm (31.1 in.)
  • Auger flights: 200 mm (7.9 in.)
  • Feed auger: Feed auger with adjustable paddles
  • Pickup height: 1.45 m (4.8 ft)
  • Pickup length: 1.35 m (4.4 ft)
  • Weight: 2215 kg (4883 lb)
  • Pickup reel: Six tine bars; tine thickness 6.5 mm (0.26 in.); six rows of 32 tines
  • Drive: Chainless drive (maintenance-reducing design)


Compatibility & applications
  • Designed for large self-propelled forage harvesters and high-yield fields.
  • Performs on lumpy or heavy windrows where even crop flow and high throughput are required.
  • Suitable for operators seeking reduced daily maintenance and higher machine availability.


Maintenance & service
  • Chainless drive reduces routine chain/sprocket inspection and replacement tasks.
  • Support-mounted tines and thicker tine profile lengthen service intervals on the pickup reel.
  • Recommended checks: tine condition, auger paddle adjustment and mounting elements at regular service intervals.


Additional information
  • Date collected: 1-Sept-2022
